Siemens 8US1211-1NS10
Siemens 8US1211-1NS10

Siemens 8US1211-1NS10

Нет отзывов
Код товара: 8US1211-1NS10
0 ₽
В наличии много 1000 шт

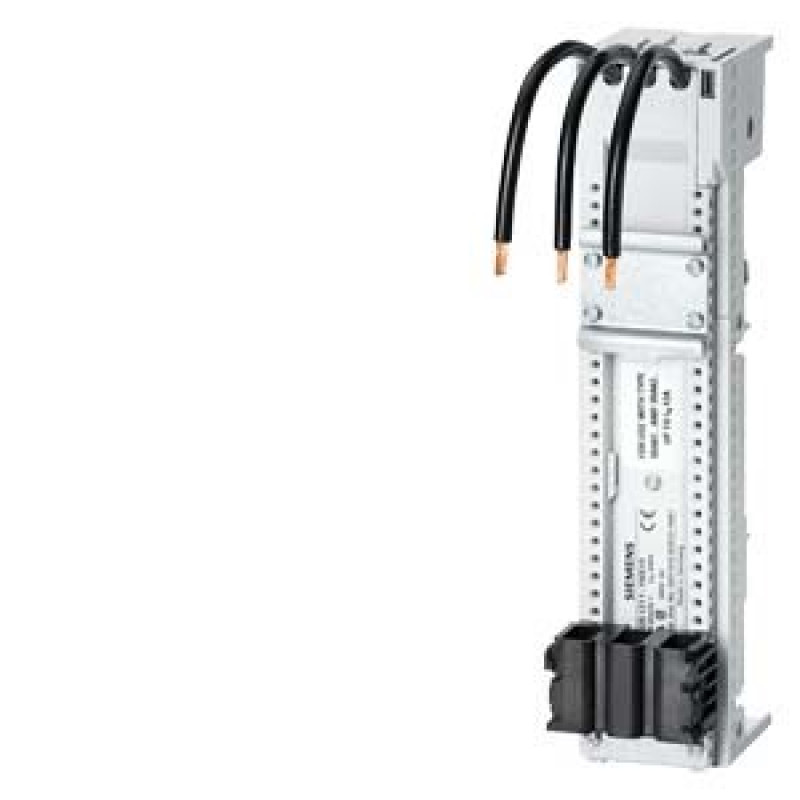

Busbar system Busbar center-to-center spacing 60 mm Device adapter, Width: 45 mm Bar thickness: 5.10 mm+TT profile with 1 DIN rail 35 mm For 3RA6 compact load feeder Length 200 mm; Ue 690 V, IE up to 32 A, Notice: if rated current >12 A and short-circuit current > 25 kA max. conductor cross-section 6 mm2 and minimum conductor length 2 m must be observed
Product
Article Number (Market Facing Number)8US1211-1NS10
Product DescriptionBusbar system Busbar center-to-center spacing 60 mm Device adapter, Width: 45 mm Bar thickness: 5.10 mm+TT profile with 1 DIN rail 35 mm For 3RA6 compact load feeder Length 200 mm; Ue 690 V, IE up to 32 A, Notice: if rated current >12 A and short-circuit current > 25 kA max. conductor cross-section 6 mm2 and minimum conductor length 2 m must be observed
Product familyBusbar systems
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group14O / 1CU
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)3 Day/Days
Net Weight (kg)0,310 Kg
Packaging Dimension81,00 x 212,00 x 71,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209761346
UPCNot available
Commodity Code85369095
LKZ_FDB/ CatalogIDLV10.1
Product Group5888
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 20.02.2008
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass120027-37-03-01
eClass140027-37-03-01
eClass60027-37-03-01
eClass71027-37-03-01
eClass80027-37-03-01
eClass90027-37-03-01
eClass91027-37-03-01
ETIM700EC001531
ETIM800EC001531
ETIM900EC001531
IDEA4005439
UNSPSC150039-13-17-02
