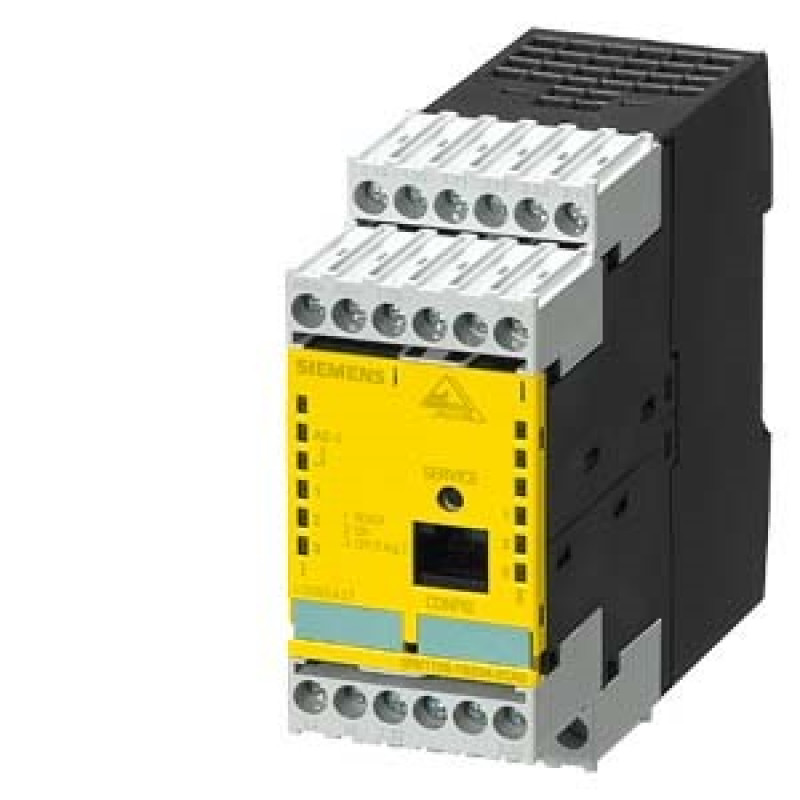

Siemens 3RK1105-1AE04-2CA0
Siemens 3RK1105-1AE04-2CA0

Siemens 3RK1105-1AE04-2CA0

Нет отзывов
Код товара: 3RK1105-1AE04-2CA0
0 ₽
В наличии много 1000 шт
ASIsafe extended Safety monitor 1 F-RO 1 enabling circuit IP20, with screw terminal removable terminals Safe output relay Response time maximum 40 ms Monitor type 3, Version 3 Can be used up to Category 4 (EN954-1) up to PL E (EN ISO 13849-1) up to SIL 3 (IEC 61508)
Product
Article Number (Market Facing Number)3RK1105-1AE04-2CA0
Product DescriptionASIsafe extended Safety monitor 1 F-RO 1 enabling circuit IP20, with screw terminal removable terminals Safe output relay Response time maximum 40 ms Monitor type 3, Version 3 Can be used up to Category 4 (EN954-1) up to PL E (EN ISO 13849-1) up to SIL 3 (IEC 61508)
Product familyAS-Interface safety monitors
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.10.2022
NotesSucessor:Conversion to F-CM AS-i Safety ST (3RK7136-6SC00-0BC1) plus F-DQ ET 200S
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)3 Day/Days
Net Weight (kg)0,332 Kg
Packaging Dimension55,00 x 110,00 x 125,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209592230
UPC754554885957
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-24-26-08
eClass140027-24-26-08
eClass60027-24-26-08
eClass71027-24-26-08
eClass80027-24-26-08
eClass90027-24-26-08
eClass91027-24-26-08
ETIM700EC001604
ETIM800EC001604
ETIM900EC001604
IDEA4003564
UNSPSC150032-15-17-05
