1FP1514-1EF4.-....
1FP1514-1EF4.-....

1FP1514-1EF4.-....

Нет отзывов
Код товара: 1FP1514-1EF4.-....
0 ₽
В наличии много 1000 шт

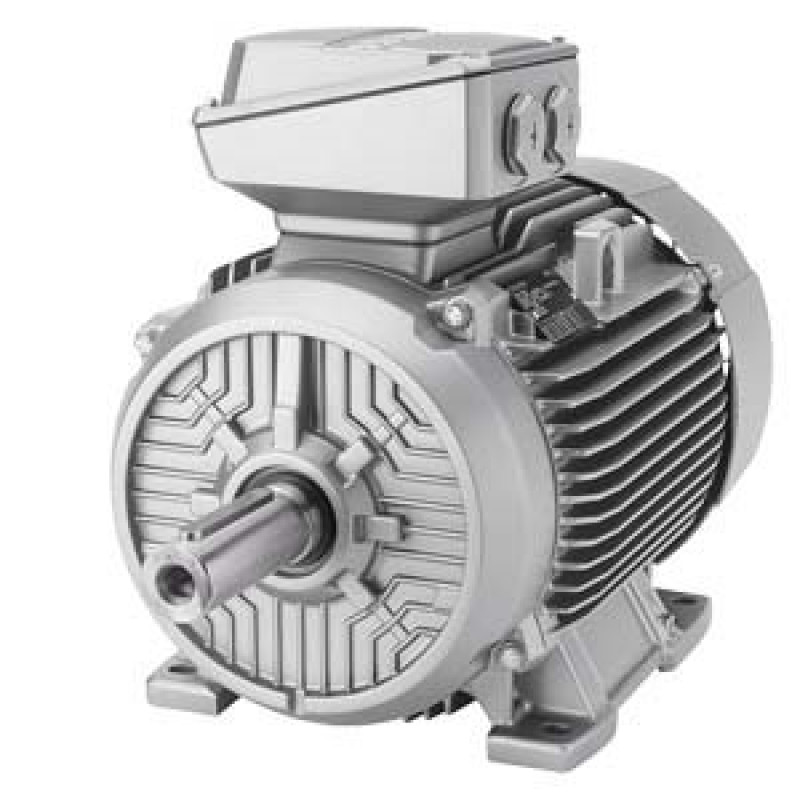

SD-VSD4000 motor type: 1TV4182F IEC LV motor, synchronous reluctance motor, self-cooled Super Premium Efficiency temperature class 155(F) according to 135(B) gray cast iron housing, IP55 only for converter operation 4-pole* size 180M* 22 kW (3000 r/min) 22 kW (3600 r/min) (2610 r/min) (2610 r/min) standard color RAL 7030 if no order code is specified for selecting another color.​ Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions
Product
Article Number (Market Facing Number)1FP1514-1EF4.-....
Product DescriptionSD-VSD4000 motor type: 1TV4182F IEC LV motor, synchronous reluctance motor, self-cooled Super Premium Efficiency temperature class 155(F) according to 135(B) gray cast iron housing, IP55 only for converter operation 4-pole* size 180M* 22 kW (3000 r/min) 22 kW (3600 r/min) (2610 r/min) (2610 r/min) standard color RAL 7030 if no order code is specified for selecting another color.​ Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
NotesProduct Configuration is incomplete. Please check the configuration.
Price data
Region Specific PriceGroup / Headquarter Price Group3F3 / 3F3
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorN-W-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)30 Day/Days
Net Weight (kg)144,000 Kg
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPCNot available
Commodity Code85015230
LKZ_FDB/ CatalogIDD81.1-5/IEC
Product Group4R81
Group CodeP113
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 22.07.2019
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-02-24-01
eClass140027-02-24-01
eClass60027-02-24-01
eClass71027-02-24-01
eClass80027-02-24-01
eClass90027-02-24-01
eClass91027-02-24-01
ETIM700EC001851
ETIM800EC001851
ETIM900EC001851
