1FK7024-5AK71-1LB3
1FK7024-5AK71-1LB3

1FK7024-5AK71-1LB3

Нет отзывов
Код товара: 1FK7024-5AK71-1LB3
0 ₽
В наличии много 1000 шт

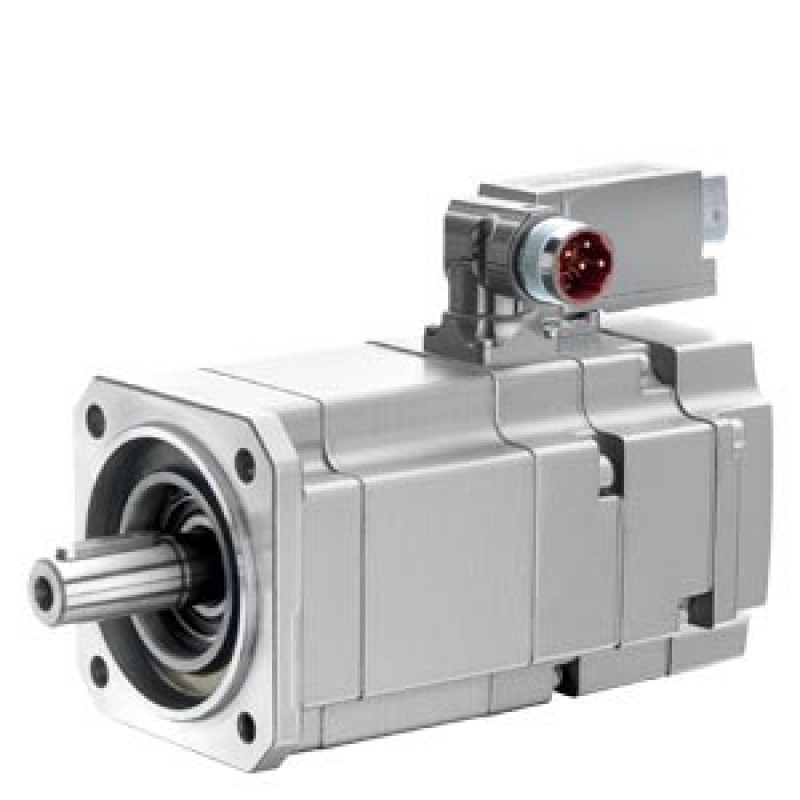

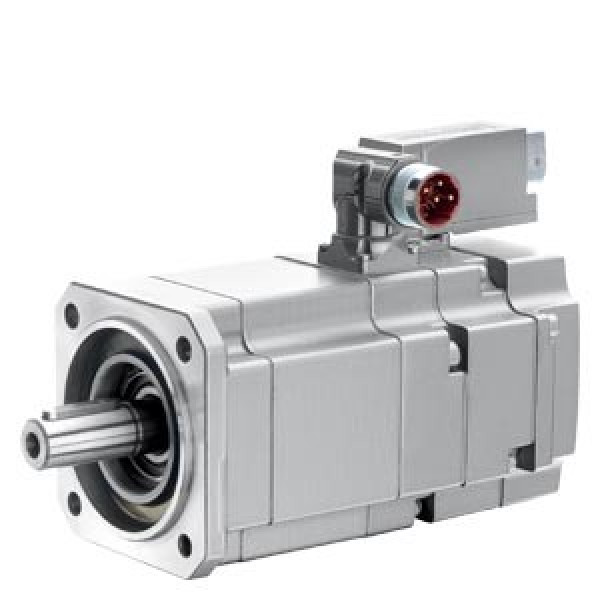

SIMOTICS S Synchronous servo motor 1FK7 Compact, 1.1Nm 100K, 6000rpm, 0.50kW Naturally cooled IM B5 (IM V1, IM V3) power/signal connectors Connector can be rotated by 270° absolute encoder 512 S/R (encoder A-512) with DRIVE-CLiQ interface Derating 10% due to absolute encoder Shaft with feather key tolerance N with holding brake Degree of protection IP64 paint finish RAL7016
Product
Article Number (Market Facing Number)1FK7024-5AK71-1LB3
Product DescriptionSIMOTICS S Synchronous servo motor 1FK7 Compact, 1.1Nm 100K, 6000rpm, 0.50kW Naturally cooled IM B5 (IM V1, IM V3) power/signal connectors Connector can be rotated by 270° absolute encoder 512 S/R (encoder A-512) with DRIVE-CLiQ interface Derating 10% due to absolute encoder Shaft with feather key tolerance N with holding brake Degree of protection IP64 paint finish RAL7016
Product familyNot available
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group762 / 762
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal Factor------71
Delivery information
Export Control RegulationsECCN : N / AL : N
Estimated dispatch time (Working Days)15 Day/Days
Net Weight (kg)2,000 Kg
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPCNot available
Commodity Code85015100
LKZ_FDB/ CatalogIDSD.NC60KT-1FK7
Product GroupX0OY
Group CodeR220
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveSince: 22.07.2017
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationInformation according REACh Article 33(1) on svhc candidate substances (substances of very high concern http://echa.europa.eu/web/guest/candidate-list-table) for configured products will be provided with the order confirmation and bill of delivery. Information is available only if a duty to inform for the configured product applies.
SCIP number
Classifications
Not available
