1FG1601-5RC26-2FB2-Z D15+G23+K08+N23
1FG1601-5RC26-2FB2-Z D15+G23+K08+N23

1FG1601-5RC26-2FB2-Z D15+G23+K08+N23

Нет отзывов
Код товара: 1FG1601-5RC26-2FB2-Z D15+G23+K08+N23
0 ₽
В наличии много 1000 шт

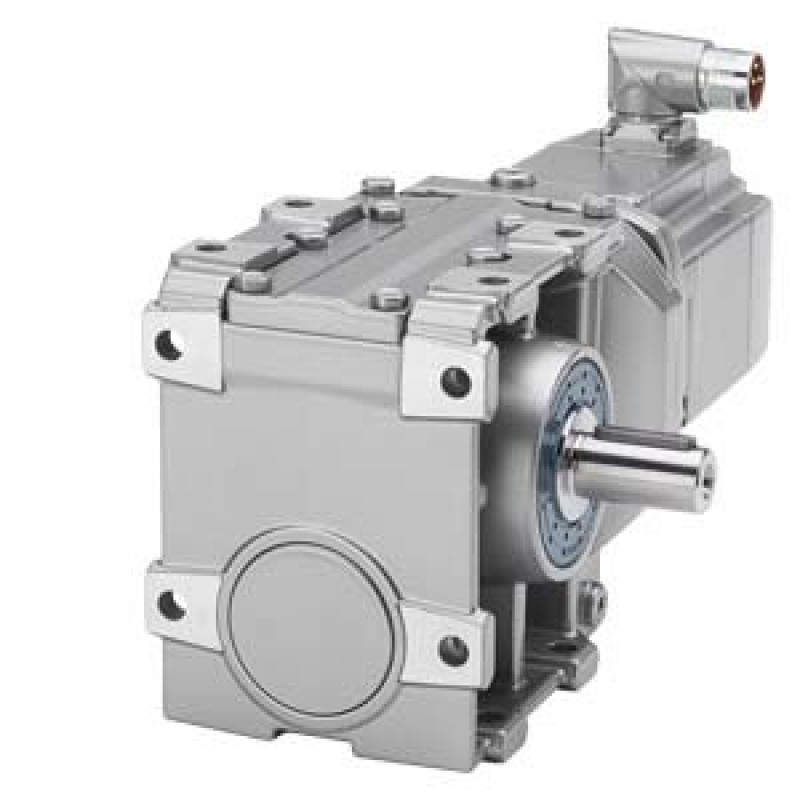

SIMOTICS S-1FG1 synchronous servo geared motor helical worm gearbox C29 motor type CT 600V AH36 Mmax=4.5 Nm Pn=0.41 kW hollow shaft with keyway H20 absolute encoder 20-bit +12-bit multi-turn with DRIVE-CLiQ interface flange B5 transmission ratio: 80.6 N1max=4500 rpm N2max = 55 rpm, M2max=127 Nm D15=mounting position M5-A G23=seal longer service life K08=oil CLP PG VG460 N23=standard holding brake
Product
Article Number (Market Facing Number)1FG1601-5RC26-2FB2-Z D15+G23+K08+N23
Product DescriptionSIMOTICS S-1FG1 synchronous servo geared motor helical worm gearbox C29 motor type CT 600V AH36 Mmax=4.5 Nm Pn=0.41 kW hollow shaft with keyway H20 absolute encoder 20-bit +12-bit multi-turn with DRIVE-CLiQ interface flange B5 transmission ratio: 80.6 N1max=4500 rpm N2max = 55 rpm, M2max=127 Nm D15=mounting position M5-A G23=seal longer service life K08=oil CLP PG VG460 N23=standard holding brake
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group769 / 769
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal Factor------71
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99H
Estimated dispatch time (Working Days)25 Day/Days
Net Weight (kg)8,260 Kg
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPCNot available
Commodity Code85015100
LKZ_FDB/ CatalogIDD41
Product Group5685
Group CodeR220
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 18.09.2017
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-02-26-02
eClass140027-02-26-02
eClass60027-02-26-02
eClass71027-02-26-02
eClass80027-02-26-02
eClass90027-02-26-02
eClass91027-02-26-02
ETIM700EC001851
ETIM800EC001851
ETIM900EC001851
