MRD TNM4000-TP28HH4X8G24T
MRD TNM4000-TP28HH4X8G24T

MRD TNM4000-TP28HH4X8G24T

Нет отзывов
Код товара: MRD TNM4000-TP28HH4X8G24T
0 ₽
В наличии много 1000 шт

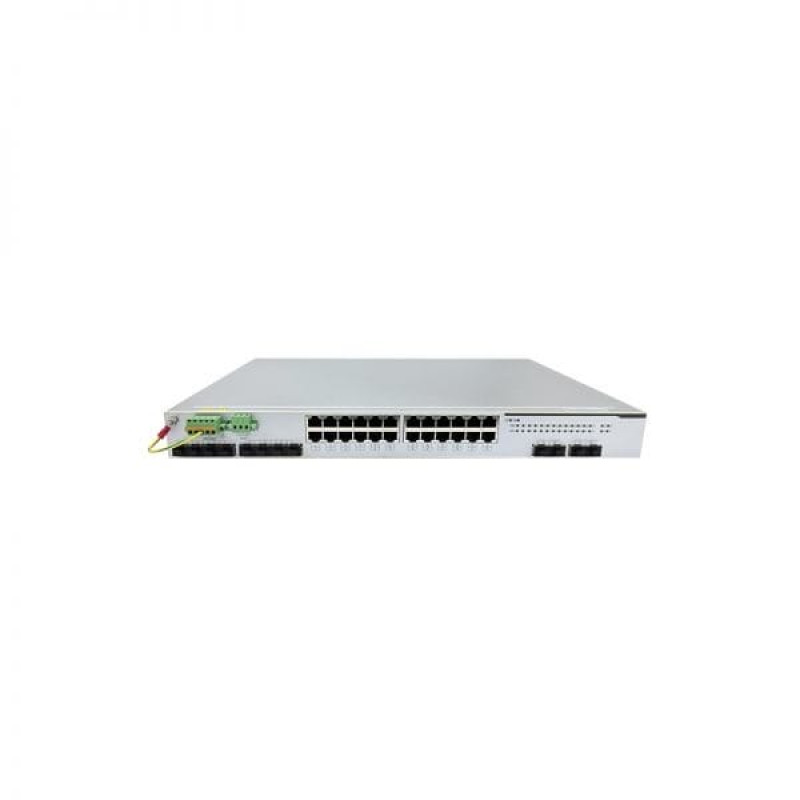

28-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 1610/100/1000BaseT Ports, 8100/1000Base(X/T) COMBO Ports, and 4100/1000/2500/10000BaseX SFP+ Ports (SFP module not included). Standard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A 250VAC/2A 30VDC), 1 SD slot, and 1 RST Button. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.

Quick Spec

Table 1 shows the quick spec of the TNM4000-TP28HH4X8G24T.

Model TNM4000-TP28HH4X8G24T
Interface Configuration MAX 28 Ports
Input Voltage 100-240VAC/DC, Dual power inputs
Fansless Yes
Backplane Bandwidth 128 Gbps
Installasion Rack-Mounted
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 442mm×43.8mm×335mm
17.41 inch x 1.73 inch x 13.19 inch
Weight 4 kg
8.82 lb
MTBF ≥800,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Rail Industry EN50121-4
Power Industry IEC61850-3
IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010 (pending)
Shipbuilding Industry GL (pending)

Product Features

  • ● EMC Class 4
  • ● Industrial fanless design
  • ● Dual redundancy 220V industrial power supply
  • ● Support relay alarm
  • ● Business port, management port, power supply and relay terminal are on the front panel, complying to industrial operation mode
  • ● Support industrial rings, STP, EAPS, ERPS etc.
  • ● Support CPU protection function, limiting the attack of invalid packets on the CPU
  • ● Support ring network recovery time <50ms (typical value)
  • ● Any two ports can be grouped into self-recovery ring, and support multiple independent self-recovery rings.
  • ● Provides packet loss protection mechanism to quickly recover from network failures
  • ● Support SNMP management
  • ● MTBF ≥800,000h

    Supported Options

    Table 2 shows the supported options of the TNM4000-TP28HH4X8G24T.

    MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
    MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
    MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
    MRD-G25-GLX Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
    MRD-G25-GEX Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
    MRD-G25-GZX Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
    MRD-10GLS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM
    MRD-10GRS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM
    MRD-10GRS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM

    Compare to Similar Items

    Table 3 shows the comparison to similar items of the TNM4000-TP28HH4X8G24T.

    Product number Product description
    TNM4000-TP28HH4G8G24T 28-port Industrial Layer 2 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 16 10/100/1000BaseT Ports, 8 100/1000Base(X/T) COMBO Ports, and 4 100/1000BaseX SFP Ports (SFP module not included). Standard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.
    DS-3T3728 16 x GE + 8 x combo + 4 x 10G SFP Operating Temperature -40 °C ~ 75 °C（HIKVISION）

    Get More Information

    Do you have any questions about the TNM4000-TP28HH4X8G24T price?

    Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 128 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 5-pin terminal block
Diagnosis Mode Indicator light, journal file, relay, RMON, port mirroring, TRAP
Dimensions (W x H x D) 442mm×43.8mm×335mm
EMI FCC 47 CFR Part 15 Class AEN 55032 Class AEN 55035 Class A
EMS IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-9, Class 5
Exchange Rate 148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Aluminum Alloy Housing
Industrial Control Industry UL/cUL61010(pending)
Input Voltage 100-240V, Dual inputs
Installasion Rack-Mounted
IP Rating IP40;
MAC Table Size 16K
Management Mode Browser, Console, Telnet, SSH 2.0, Syslog, NTP/SNTP, STD-62 SNMPv3, SNMPv2c, SNMPv1, FTP/TFTP
MTBF ≥800,000H
Operating Temperature -40 ℃ ~ 85 ℃
Others 4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Overload Current Protection Supported
Packet Buffer Size 108 Mbti
Power Consumption 35W
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1FCC Part 15 Subpart B Class A
Rail Industry EN50121-4
Redundancy RSTP, STP, MSTP, MRD-Ring®, port trunking
Reverse Polarity Protection Supported
Shipbuilding Industry GL (pending)
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization NTP
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Vibration IEC 60068-2-6
Weight 4 kg
