Application Scenario
FTTH, FTTO, FTTB
Brand
Huawei
Compatible Optical Network Unit (ONU)
XGS-PON ONUs
Compliance
ITU-T G.987 and G.9807.1
Data Rate
Up to 10 Gbps downstream/upstream
Dimensions (H x W x D)
Information Not Specified
Fan
Optional
Hot Swappable
Yes
Interface Type

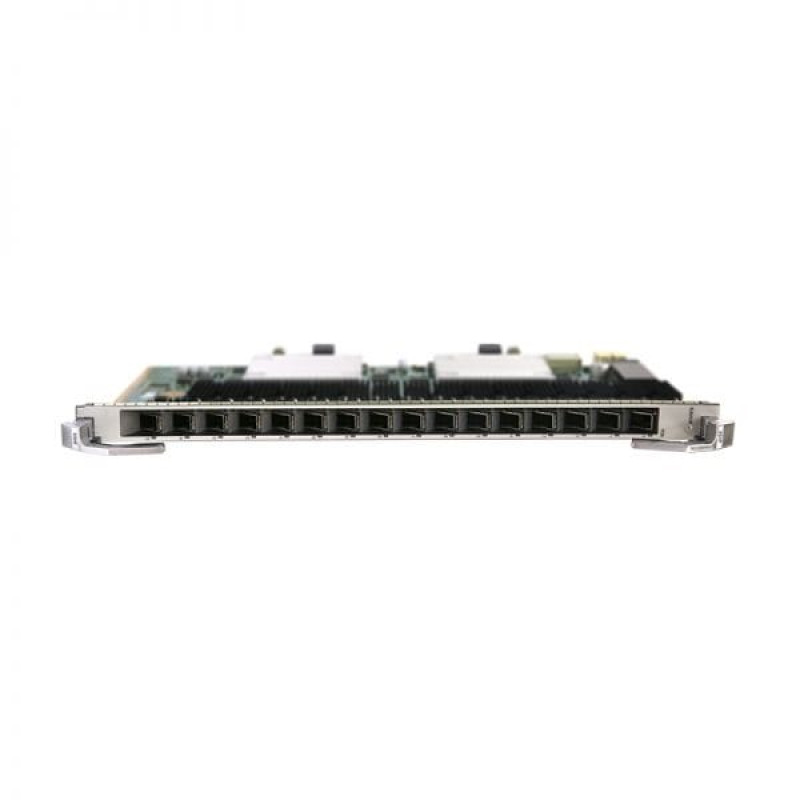

16-port XGS-PON OLT
Main Features
High Density, High Bandwidth, Future-Proof
Management
SNMP, Telnet, CLI
Maximum Split Ratio
1:128
Model Name
H902XSHF
Network Type
Optical Network
Optical Connector Type
SC/APC
Port Density
16 ports
Power Consumption
Low Power Consumption
Product Line
SmartAX MA5800
Security Features
Authorization, Authentication, AES Encryption
Technology
XGS-PON
Transmission Distance
Up to 20 km
Wavelengths
Upstream: 1577 nm, Downstream: 1270 nm
