Brand
Huawei
Compatibility
Huawei SmartAX MA5800 Series
Compliance
ITU-T G.987/XG-PON1 Standards
Dimensions (H x W x D)
Approx. 23.1 mm x 391 mm x 25.0 mm
Downlink Speed
10 Gbps
Encryption
128-bit AES
Features
High-density, Low power consumption, Easy deployment
Firmware Upgrade
Online/Offline upgrade, ONU authentication
Model Name
H902XSHD
Mounting
Rack Mountable
Network Management
SNMP, Telnet, SSH, OMCI
Operating Humidity
5% to 95% (non-condensing)
Operating Temperature
-40°C to +65°C
Optical Connector Type
SC/APC
Ports
8 XGS-PON Ports
Power Consumption
Typical: 55W, Max: 70W
Product Type

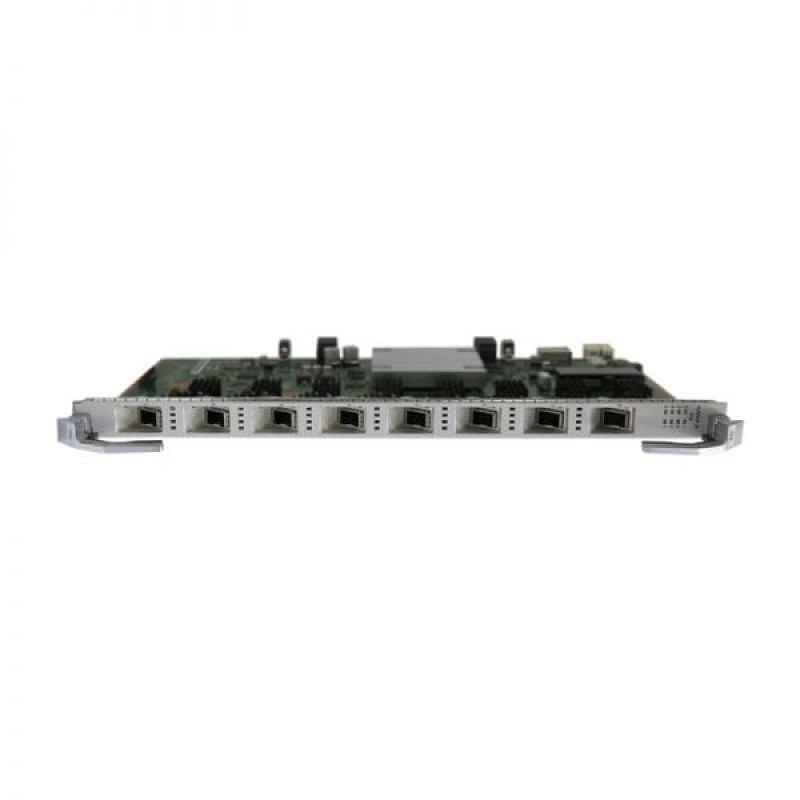

8-port XGS-PON OLT Interface Board
Quality of Service (QoS)
Supports Priority levels, traffic shaping, and flow statistics
Service Interface
GPON Service Ports
Uplink Speed
10 Gbps
Wavelength
Upstream: 1270nm / Downstream: 1577nm
