Application
Broadband, Voice, IPTV, and Mobile Backhaul
Brand
Huawei
Compatibility Note
Requires Huawei SmartAX MA5800 Series Chassis
Compatible with
SmartAX MA5800 Series
Installation Mode
Hot swappable
Interface Compatibility
Compatible with GPON and 10G GPON
Management
SNMP, Telnet, OMCI
Max Split Ratio
1:128

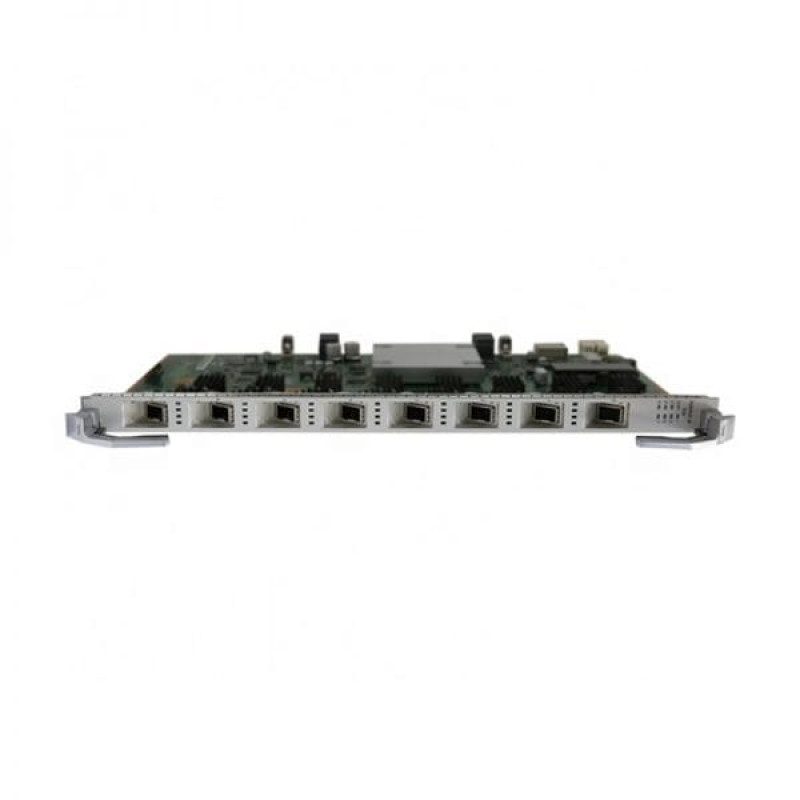

Model
H902TWHD
Networking Mode
Point-to-multipoint
Operating Wavelength
Tx 1577 nm, Rx 1270 nm
Physical Configuration
Plug and play module
Port Type
XGS-PON OLT Interface
Ports
8-port XGS-PON
Power Consumption
Low Power Consumption
Product Type
OLT Interface Board
Software Features
ONU authentication, Encryption, QoS
Supports
DBA, SR, Type B protection
Transmission Distance
Up to 20 km
Transmission Speed
Up to 10 Gbps downstream / 10 Gbps upstream
