Brand
Huawei
Compatibility
Huawei SmartAX MA5800 Series
Compatibility with GPON
Yes
Connector Type
SC/UPC
Downstream Transmission Rate
10 Gbps
Encryption
128-bit AES
Humidity Range
5% to 95% (non-condensing)
Maximum Split Ratio
1:128
Model Name
SmartAX MA5800 H901TWED
Network Management
SNMP, Telnet, OMCI
ONT Compatibility
Supports XGS-PON and GPON coexistence
Operating Temperature
-40°C to +65°C
Physical Dimensions
Specific to Huawei SmartAX MA5800 chassis
Ports
8 XGS-PON
Power Consumption
Low power consumption design
Quality of Service (QoS)
Enhanced QoS features for critical services
Services Supported
Data, Voice, Video, Mobile Backhaul
Software Features
Comprehensive OAM features, including OMCI and TR-069
Type

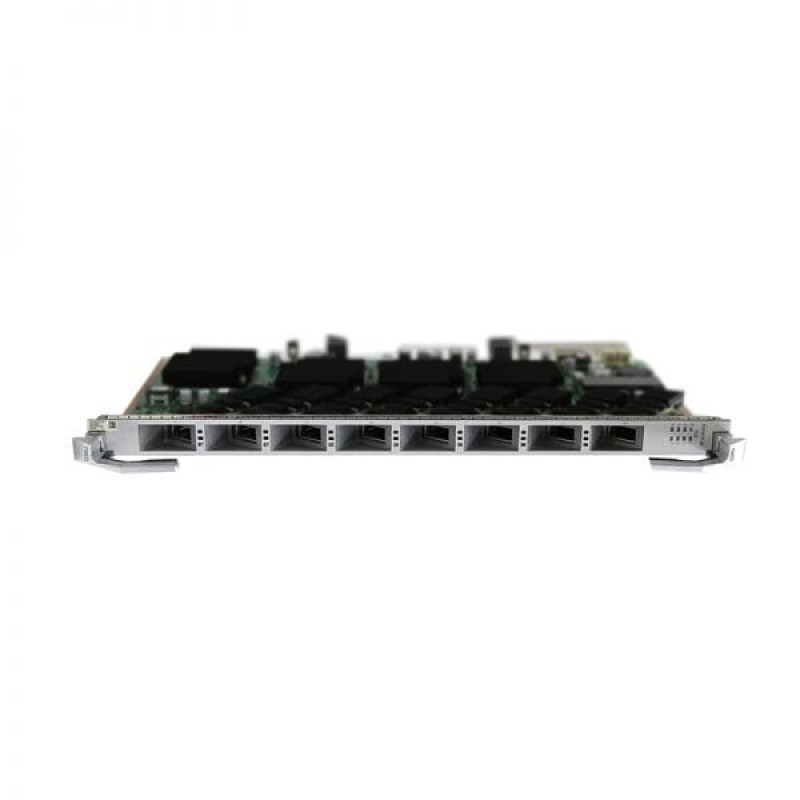

8-port XGS-PON OLT Interface Board
Upstream Transmission Rate
10 Gbps
Wavelengths
Upstream 1270 nm, Downstream 1577 nm
