Brand
Huawei
Compatible Series
SmartAX MA5800 Series
Dimensions (H x W x D, mm)
23.9mm x 391mm x 245mm
EMC Compliance
Fully compliant with EMC regulations
Enclosure Type
Plug-in Module
GPON Speed
Upstream 1.244Gbps, Downstream 2.488Gbps
Interface Type
SC/PC
Layer 3 Features
Static Route, RIPv2, OSPF
Maximum Split Ratio
1:128
Network Protocols Supported
GPON, OMCI, G.984.x
ONU Management
SN or password authentication, LOID+password authentication
Operating Humidity
5% to 95% (non-condensing)
Operating Temperature
-10°C to 55°C
Optical Module
Class B+/C+ SFP Module
Port Quantity
16 GPON Ports
Power Consumption
Typical: 55W, Maximum: 65W
Product Name

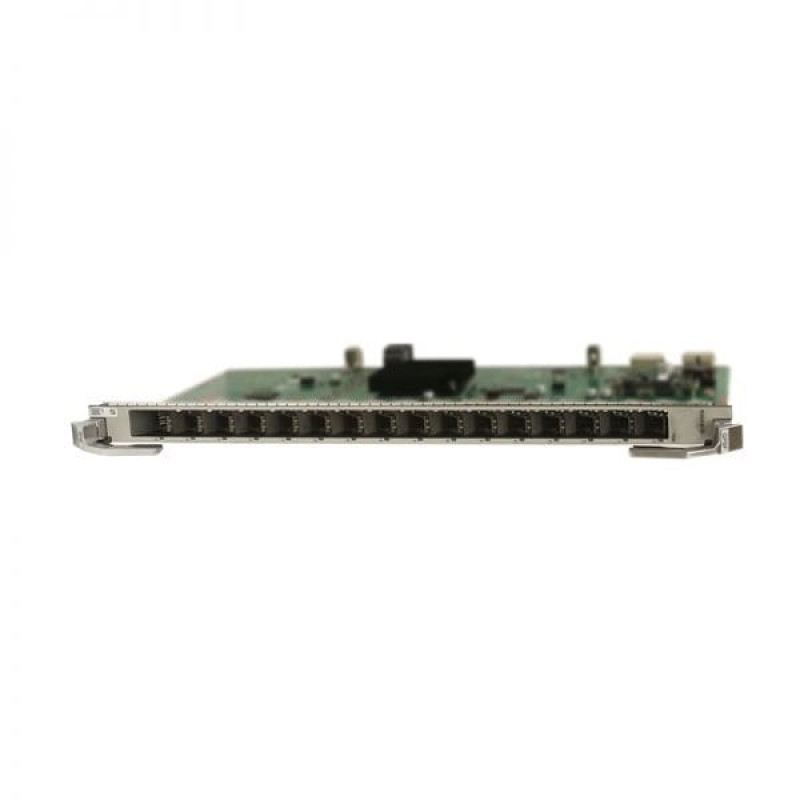

Huawei SmartAX MA5800 H902GPSF
QoS Mechanisms
Priority marking/remarking, SP/WRR/SP+WRR
Safety Standard
Complies with relevant international and national standards
Transmission Distance
Up to 20km
Type
16-port GPON OLT interface board
