Brand
Huawei
Compatible with
Huawei SmartAX MA5800 Series OLTs
Downstream Data Rate
2.5 Gbps (GPON), 10 Gbps (XG-PON)
Features
Supports Dynamic Bandwidth Allocation (DBA), Network Slicing, and OLT virtualization
Management Interfaces
SNMP, Telnet, SSH, OMCI
Maximum Split Ratio
1:128 in GPON, 1:64 in XG-PON
Model Name

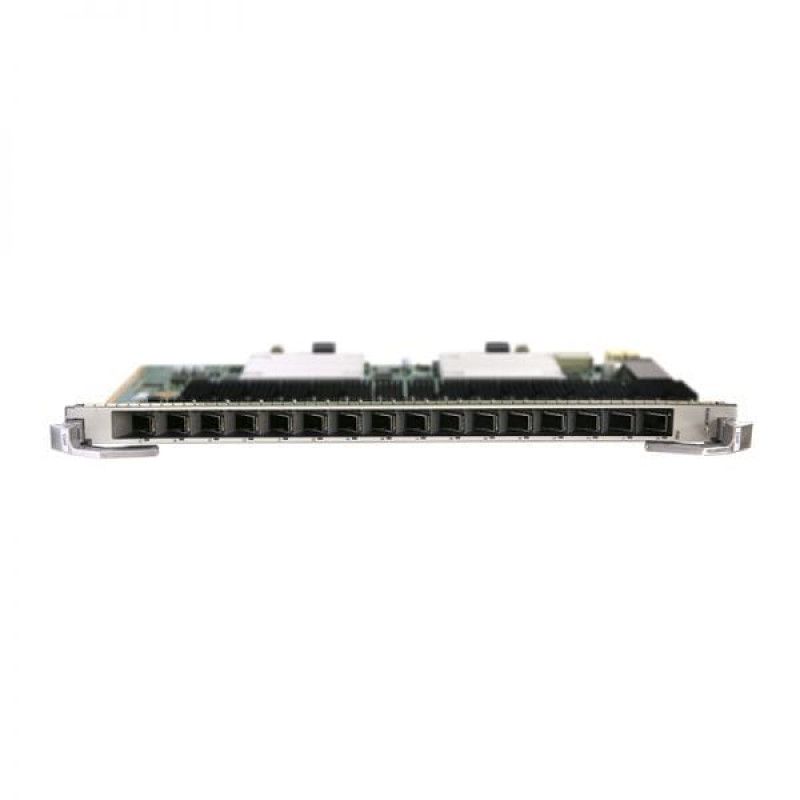

SmartAX MA5800 H902CGHF
Network Security
Supports user isolation, anti-DoS, and AES-128 encryption
OLT Interface
SC/UPC or SC/APC
ONU Management
OMCI protocol
Operational Temperature
-40°C to +65°C
Ports
16 XG-PON/GPON
Power Consumption
Typical: 55 W, Maximum: 65 W
Power Supply
Dual power supply slots for redundancy
Quality of Service (QoS)
Supports hierarchical QoS, traffic shaping, and priority marking
Software Compatibility
Compatible with Huawei iManager U2000 network management system
Standards Compliant
ITU-T G.984.x (GPON), G.987.x (XG-PON)
Type
16-port XG-PON and GPON Combo OLT interface board
Upstream Data Rate
1.25 Gbps (GPON), 2.5 Gbps (XG-PON)
Wavelengths
1490nm (Downstream), 1310nm (Upstream) in GPON; 1577nm (Downstream), 1270nm (Upstream) in XG-PON
