Application
Fiber to the Home (FTTH), Fiber to the Building (FTTB), Fiber to the Curb (FTTC)
Brand
Huawei
Certification
FCC, CE, RoHS
Compatibility
Huawei SmartAX MA5800 series OLT
Downstream Data Rate
XG-PON: 2.488 Gbps, GPON: 1.244 Gbps
Encryption
AES128 for XG-PON, AES32 for GPON
Features
High-density integration, energy saving, GPON and XG-PON co-existence
Fiber Type
Single Mode
Management
SNMP, Telnet, OMCI
Max Split Ratio
1:128
Model Name
SmartAX MA5800 H902CGHD
Network Type
Optical Transport Network
Operating Humidity
5% to 95% non-condensing
Operating Temperature
-30°C to +60°C (-22°F to +140°F)
Optical Interface
SC/UPC, SC/APC
Port Quantity
8 ports
Port Type
XG-PON and GPON Combo
Power Consumption
Low power consumption
Storage Temperature
-40°C to +70°C (-40°F to +158°F)

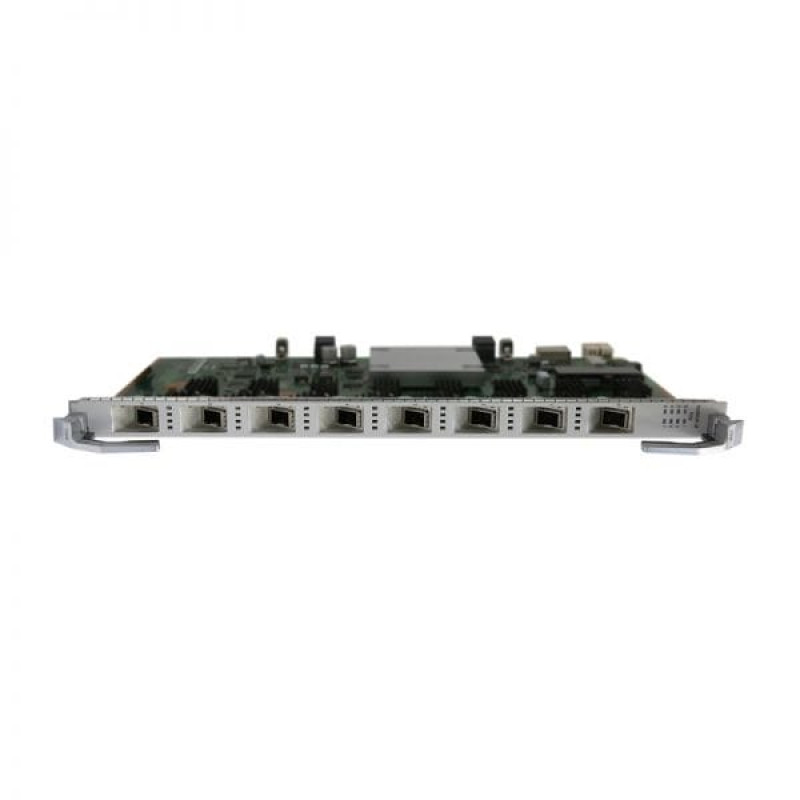

Type
8-port XG-PON and GPON Combo OLT interface board
Upstream Data Rate
XG-PON: 1.244 Gbps, GPON: 2.488 Gbps
Wavelength
XG-PON: 1577nm (Downstream), 1270nm (Upstream); GPON: 1490nm (Downstream), 1310nm (Upstream)
