Brand
Huawei
Compatibility
Compatible with existing GPON deployments
Compatible with
SmartAX MA5800 Series
Connector Type
SC/APC
Deployment
Urban, Rural, and Dense Area Networks
Dimensions (H x W x D)
Not Specified
Maximum Split Ratio
1:128
Network Rate
GPON: 2.488 Gbps Downstream, 1.244 Gbps Upstream; XGS-PON: 10 Gbps Downstream, 2.5 Gbps Upstream
ONT Management
Supports OMCI
Operating Temperature
-40°C to +65°C
Port Quantity
16 ports
Power Consumption
Not Specified
Product Name
SmartAX MA5800 H901CSHF
Quality of Service (QoS)
Enhanced QoS for critical services
Security
Supports security features including authentication and encryption
Service Type
Data, Voice, Video, and Mobile Backhaul
Software Features
Supports Huawei iManager U2000
Technology
XGS-PON and GPON

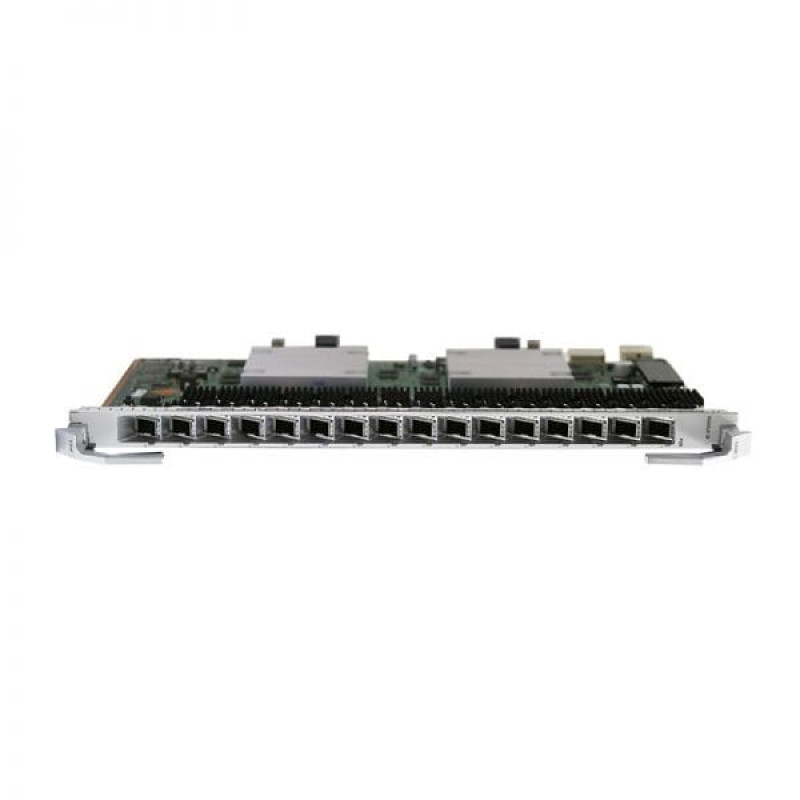

Type
16-port XGS-PON and GPON Combo OLT interface board
Wavelength
GPON: TX 1490nm, RX 1310nm; XGS-PON: TX 1577nm, RX 1270nm
