Brand
HPE
Certifications
CE, FCC, UL, cUL, TUV, GS, CCC
Data Traffic Management
ISL Trunking, Advanced Performance Monitoring
Dimensions (H x W x D)
1.72 x 17.2 x 24.2 in
Energy Efficiency
High-efficiency power supplies
Fibre Channel Ports
48 Active Ports
Form Factor
1U
Hot-Pluggable
Yes, hot-pluggable ports and power supplies
Humidity Range
10% to 90%, non-condensing
Management Features
Web-based management, SAN Network Advisor
Network Fabric Support
32Gb/s Fibre Channel
Operational Temperature Range
0°C to 40°C
Performance
32 Gbit/sec line speed, full duplex
Power Supply
Dual, redundant, hot swap power supplies
Product Model
Q0U56B
Product Name

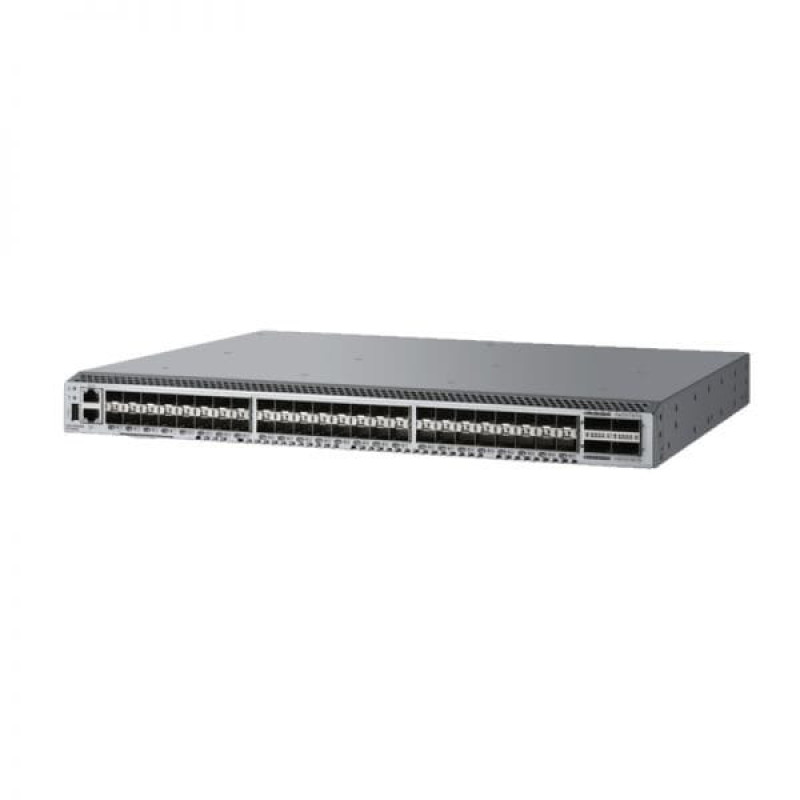

HPE StoreFabric SN6600B 32Gb 48/48 Fibre Channel Switch
Protocols Supported
FCP-2, FC-SP, FC-GS-4/5/6, FC-LS, FC-FS-2, FC-SW-4/5/6
Security Features
DH-CHAP authentication, FIPS 140-2 certification
Storage Temperature Range
-10°C to 70°C
Upgradeable
Yes, firmware upgrades
Warranty
Limited lifetime warranty
