Antenna Type
Internal Antenna
Brand
Cisco
Certification
FCC, CE, IC
Dimensions (H x W x D)
5.5 x 5.5 x 1.5 inches (14 x 14 x 3.8 cm)
Ethernet Speed
10/100 Mbps
Frequency Bands
2.4 GHz and 5 GHz
LED Indicators
Power, Status
Maximum Data Rate
300 Mbps

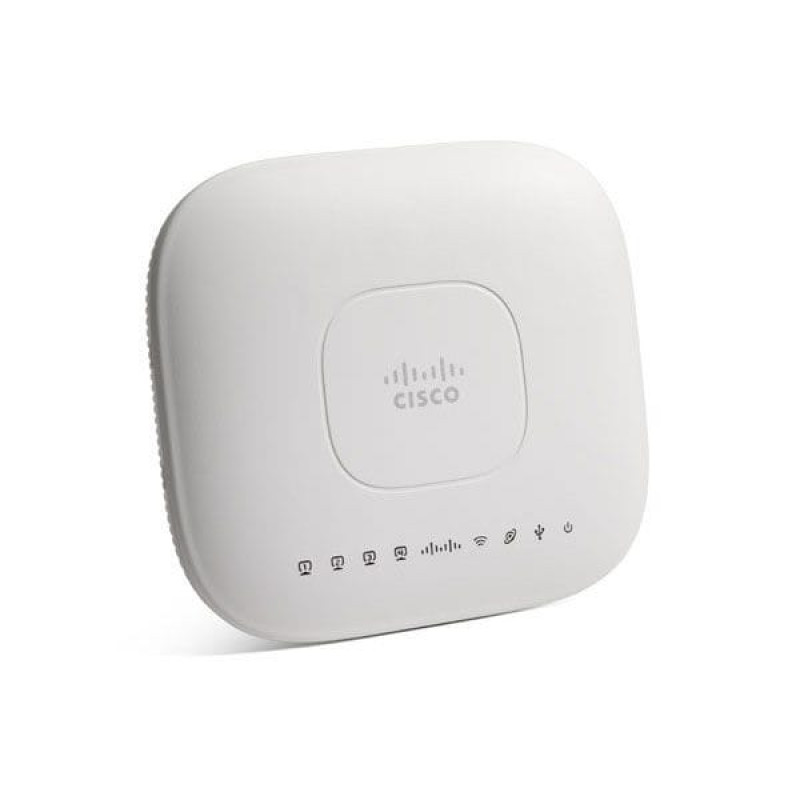

Model
AIR-OEAP602I-S-K9
Number of Ethernet Ports
1
Operating Temperature
-4 to 104°F (-20 to 40°C)
Power Supply
Power over Ethernet (PoE) or external power supply
Product Type
Access Point
Regulatory Domain
S (Singapore)
Relative Humidity (Operational)
10% to 90% (non-condensing)
Relative Humidity (Storage)
10% to 95% (non-condensing)
Security Features
SSID, VLAN, RADIUS, WPA/WPA2
Storage Temperature
-40 to 158°F (-40 to 70°C)
Supported Encryption
WEP, WPA, WPA2
Wireless Standards
802.11a/g/n
