6MD2320-0AA07-1AB0
6MD2320-0AA07-1AB0

6MD2320-0AA07-1AB0

Нет отзывов
Код товара: 6MD2320-0AA07-1AB0
0 ₽
В наличии много 1000 шт

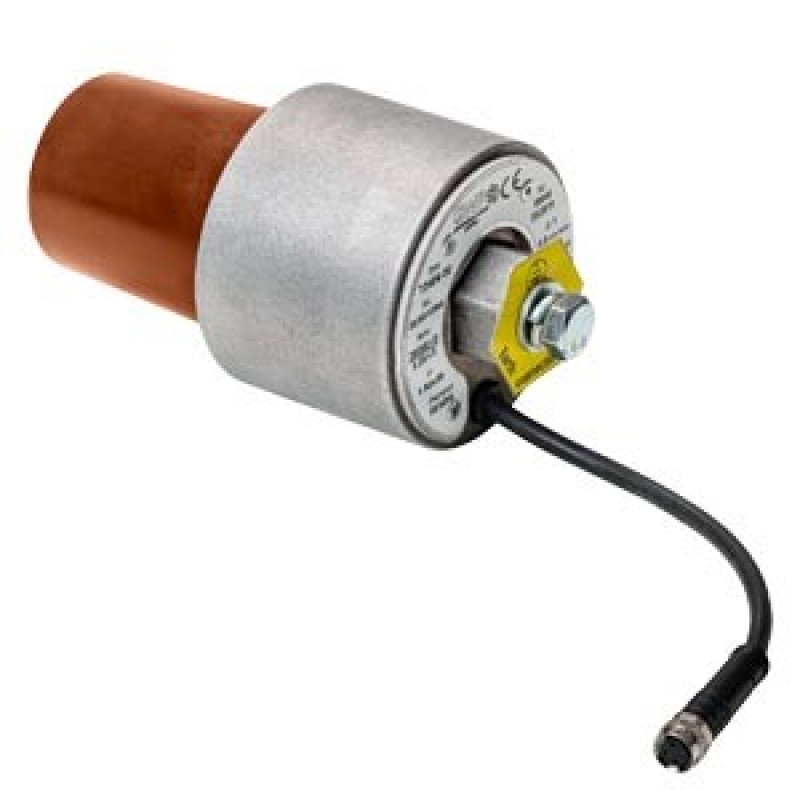

Low-Power Voltage sensor 3,25 Volt/Radical 3 at 20 kV/ Radical 3 according IEC 61869-11, for asymmetrical T-connector with C-cone (short version), e.g. for Nexans (K)430TB, nkt CB24-xxx, Südkabel SET24 und SAT24, Cellpack CTS 630 A 24kV, Tyco RSTI-58XX and RSTI-CC 58XX T-connectors accuracy class: 0,5 (FCM V3.30 onwards), else 1, Insulation level: 24/50/125 kV, Voltage factor: 1,2*Un and 1,9*Un for 8 h, with connection cable 2,0 m open end
Product
Article Number (Market Facing Number)6MD2320-0AA07-1AB0
Product DescriptionLow-Power Voltage sensor 3,25 Volt/Radical 3 at 20 kV/ Radical 3 according IEC 61869-11, for asymmetrical T-connector with C-cone (short version), e.g. for Nexans (K)430TB, nkt CB24-xxx, Südkabel SET24 und SAT24, Cellpack CTS 630 A 24kV, Tyco RSTI-58XX and RSTI-CC 58XX T-connectors accuracy class: 0,5 (FCM V3.30 onwards), else 1, Insulation level: 24/50/125 kV, Voltage factor: 1,2*Un and 1,9*Un for 8 h, with connection cable 2,0 m open end
Product familySICAM FCM - Feeder Condition Monitor
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group182 / B29
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)On request
Net Weight (kg)0,650 Kg
Packaging Dimension26,00 x 39,00 x 14,00
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4025515640233
UPCNot available
Commodity Code85043129
LKZ_FDB/ CatalogIDPTD/EA
Product Group1390
Group CodeU321
Country of originSerbia
Compliance with the substance restrictions according to RoHS directiveSince: 16.07.2015
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass120027-14-90-90
eClass140027-14-90-90
eClass60027-14-90-90
eClass71027-14-90-90
eClass80027-14-90-90
eClass90027-14-90-90
eClass91027-14-90-90
ETIM700EC002608
ETIM800EC002608
ETIM900EC002608
UNSPSC150032-15-17-05
