7KG9711-0JJ10-0BB0
7KG9711-0JJ10-0BB0

7KG9711-0JJ10-0BB0

Нет отзывов
Код товара: 7KG9711-0JJ10-0BB0
0 ₽
В наличии много 1000 шт

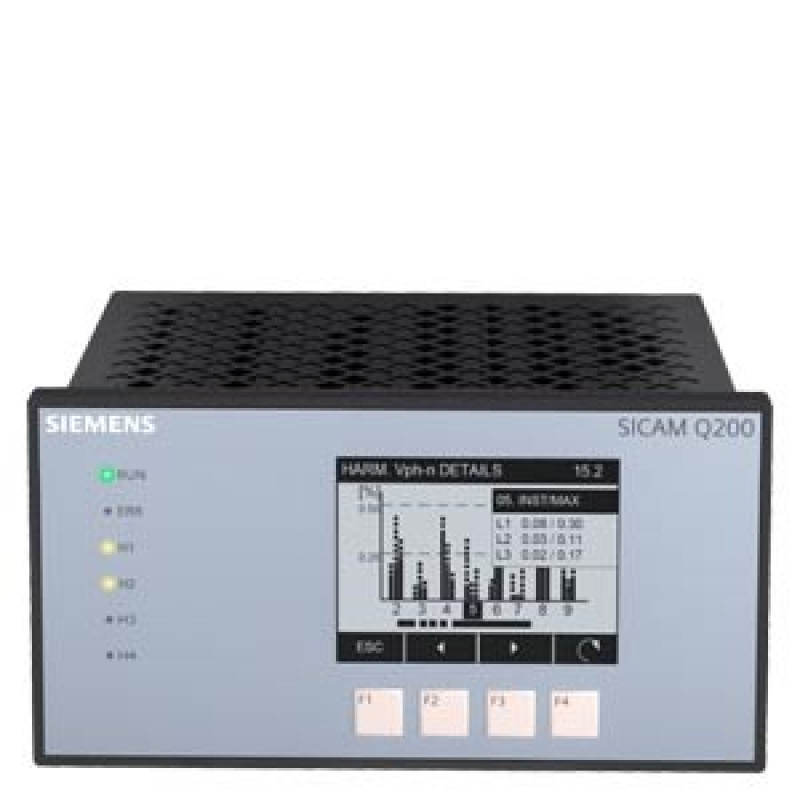

Multifunctional Power Quality Instrument SICAM Q200, PQI-A, Device dimensions (W x H x D): 192 mm x 96 mm x 134.6 mm, Panel flush-mounting device with integrated LCD display, Supply voltage: 110 V – 230 V, 4 inputs AC voltage measurement 4 inputs AC current measurement 6 binary in- & 6 binary outputs Web server for parameterization and visualization, . NTP time synchronization, . CE and UL certification, . 2 GB memory, Ethernet switch, Ethernet interface, RJ45, and communication protocol DNP3 IP, Modbus TCP and IEC 61850 server Serial interface, RS485, for Modbus RTU Gateway/Master
Product
Article Number (Market Facing Number)7KG9711-0JJ10-0BB0
Product DescriptionMultifunctional Power Quality Instrument SICAM Q200, PQI-A, Device dimensions (W x H x D): 192 mm x 96 mm x 134.6 mm, Panel flush-mounting device with integrated LCD display, Supply voltage: 110 V – 230 V, 4 inputs AC voltage measurement 4 inputs AC current measurement 6 binary in- & 6 binary outputs Web server for parameterization and visualization, . NTP time synchronization, . CE and UL certification, . 2 GB memory, Ethernet switch, Ethernet interface, RJ45, and communication protocol DNP3 IP, Modbus TCP and IEC 61850 server Serial interface, RS485, for Modbus RTU Gateway/Master
Product familySICAM Q200 - Multifunctional Power Recorder and Power Analyzer
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group182 / B23
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)30 Day/Days
Net Weight (kg)0,900 Kg
Packaging Dimension0,26 x 0,384 x 0,262
Package size unit of measureM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4025515640356
UPCNot available
Commodity Code90303200
LKZ_FDB/ CatalogIDSR10
Product Group1350
Group CodeU321
Country of originIndia
Compliance with the substance restrictions according to RoHS directiveSince: 09.03.2016
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass120027-14-23-30
eClass140027-14-23-30
eClass60027-14-23-30
eClass71027-14-23-30
eClass80027-14-23-30
eClass90027-14-23-30
eClass91027-14-23-30
ETIM700EC001441
ETIM800EC004489
ETIM900EC004489
UNSPSC150032-15-17-05
