7KG9501-0AA31-2AA1
7KG9501-0AA31-2AA1

7KG9501-0AA31-2AA1

Нет отзывов
Код товара: 7KG9501-0AA31-2AA1
0 ₽
В наличии много 1000 шт

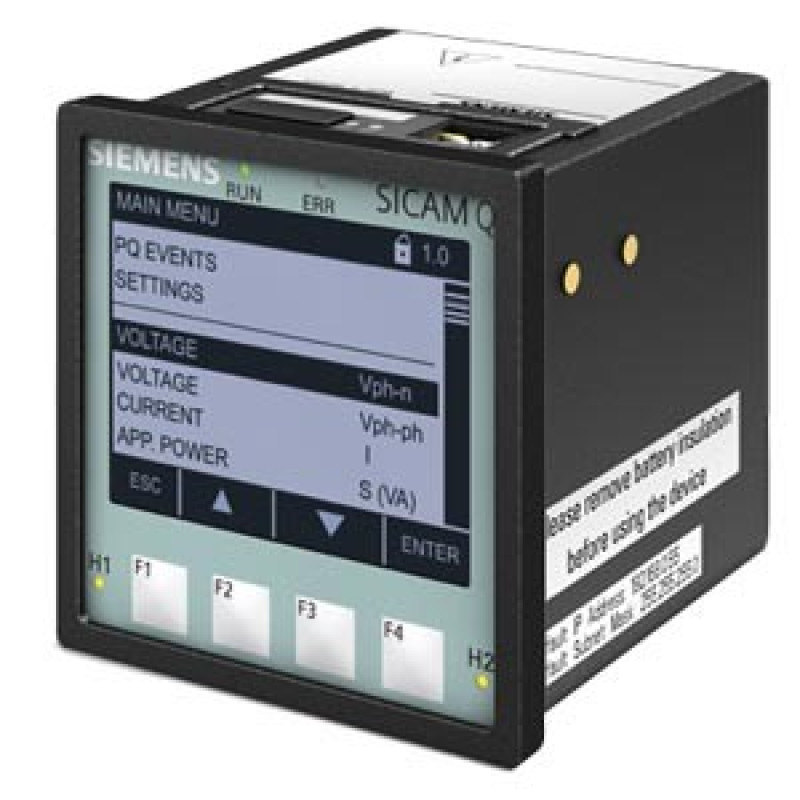

Multifunctional Power Quality Instrument SICAM Q100, PQI-A, Dimensions 96mm x 96mm x 100mm, Panel flush-mounting device with LCD, power supply voltage: DC 24 – 230 V / AC 110 – 230 V, 4 inputs AC voltage measurement 4 inputs AC current measurement 2 binary in-, 2 binary outputs, Web server for parameterization and visualization, . NTP time synchronization, . CE and UL certification, . 2 GB memory, Ethernet switch, Ethernet interface, RJ45, and communication protocols SNMPv3, Modbus TCP and IEC 61850 server Serial interface, RS485, for Modbus RTU Gateway/Master
Product
Article Number (Market Facing Number)7KG9501-0AA31-2AA1
Product DescriptionMultifunctional Power Quality Instrument SICAM Q100, PQI-A, Dimensions 96mm x 96mm x 100mm, Panel flush-mounting device with LCD, power supply voltage: DC 24 – 230 V / AC 110 – 230 V, 4 inputs AC voltage measurement 4 inputs AC current measurement 2 binary in-, 2 binary outputs, Web server for parameterization and visualization, . NTP time synchronization, . CE and UL certification, . 2 GB memory, Ethernet switch, Ethernet interface, RJ45, and communication protocols SNMPv3, Modbus TCP and IEC 61850 server Serial interface, RS485, for Modbus RTU Gateway/Master
Product familySICAM Q100 - Power Quality Recorder
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group182 / B23
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : 9N9999
Estimated dispatch time (Working Days)20 Day/Days
Net Weight (kg)0,778 Kg
Packaging Dimension0,115 x 0,155 x 0,14
Package size unit of measureM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4025515640097
UPCNot available
Commodity Code90303200
LKZ_FDB/ CatalogIDPTD/EA
Product Group1350
Group CodeU321
Country of originIndia
Compliance with the substance restrictions according to RoHS directiveSince: 20.05.2014
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass120027-14-23-30
eClass140027-14-23-30
eClass60027-14-23-30
eClass71027-14-23-30
eClass80027-14-23-30
eClass90027-14-23-30
eClass91027-14-23-30
ETIM700EC001441
ETIM800EC004489
ETIM900EC004489
UNSPSC150032-15-17-05
