1FN3100-3KC50-0SA0
1FN3100-3KC50-0SA0

1FN3100-3KC50-0SA0

Нет отзывов
Код товара: 1FN3100-3KC50-0SA0
0 ₽
В наличии много 1000 шт

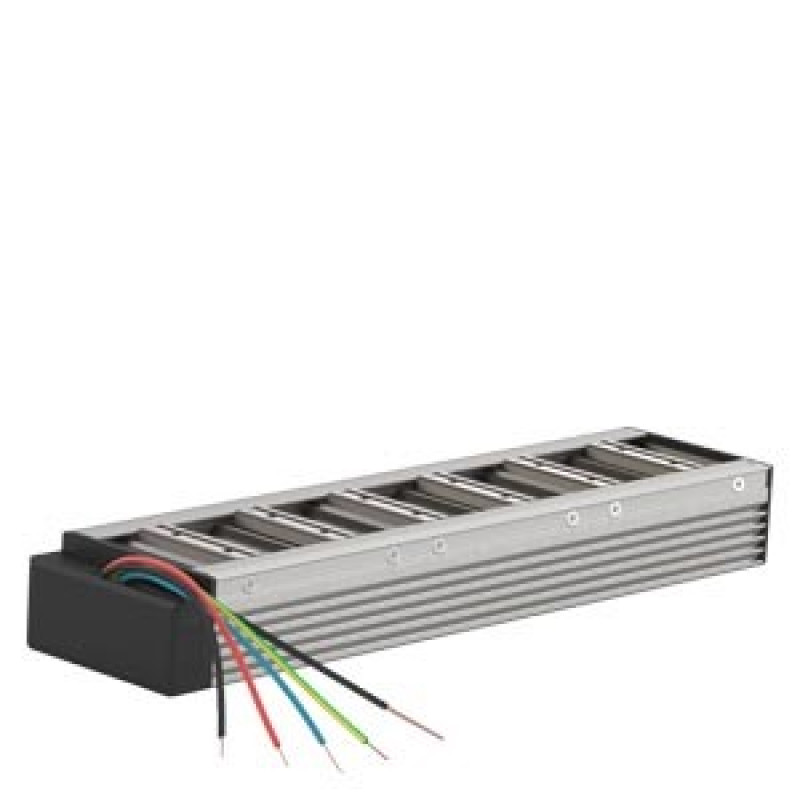

SIMOTICS L primary section; component 3-phase synchronous motor; naturally cooled type; FN=725 N; Fmax=2030 N; Vmax/FN=399 m/min; Vmax/Fmax=139 m/min In=8.85 A; Imax=37.6 A; with PTC120; connection of power and signal with fixed connected cables with bare wire ends; power cable: 0.5m, signal cable:0.26m;
Product
Article Number (Market Facing Number)1FN3100-3KC50-0SA0
Product DescriptionSIMOTICS L primary section; component 3-phase synchronous motor; naturally cooled type; FN=725 N; Fmax=2030 N; Vmax/FN=399 m/min; Vmax/Fmax=139 m/min In=8.85 A; Imax=37.6 A; with PTC120; connection of power and signal with fixed connected cables with bare wire ends; power cable: 0.5m, signal cable:0.26m;
Product familySIMOTICS L-1FN3 linear motors for SINAMICS S120
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group763 / 763
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)45 Day/Days
Net Weight (kg)6,250 Kg
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPCNot available
Commodity Code85030099
LKZ_FDB/ CatalogIDSD.NC60KT-1FN3
Product GroupX0P3
Group CodeR220
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveSince: 21.07.2019
Product classD: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer)
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationInformation according REACh Article 33(1) on svhc candidate substances (substances of very high concern http://echa.europa.eu/web/guest/candidate-list-table) for configured products will be provided with the order confirmation and bill of delivery. Information is available only if a duty to inform for the configured product applies.
SCIP number
Classifications
VersionClassification
eClass120027-02-28-91
eClass140027-02-28-91
eClass60027-02-28-01
eClass71027-02-91-09
eClass80027-02-91-09
eClass90027-02-28-91
eClass91027-02-28-91
ETIM700EC001851
ETIM800EC001851
ETIM900EC001851
