6SL5310-1BE13-5DF0

6SL5310-1BE13-5DF0

6SL5310-1BE13-5DF0

Нет отзывов

Siemens

Бренд

Код товара: 6SL5310-1BE13-5DF0

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

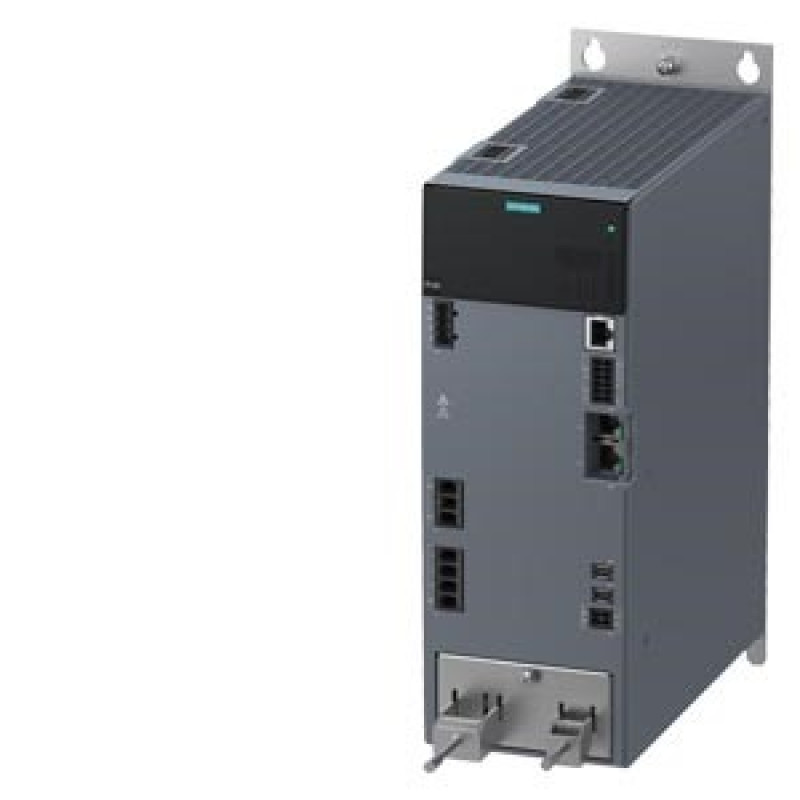

SINAMICS S210 input voltage 200-480 V 3AC -10%/+10% 12.5 A 45-66 Hz output voltage: 0 input V 9.0 A 0-550 Hz motor: 3.5 kW degree of protection: IP20 frame size C 105 x 322 x 223 (WxHxD)

Product

Article Number (Market Facing Number)

6SL5310-1BE13-5DF0

Product Description

SINAMICS S210 input voltage 200-480 V 3AC -10%/+10% 12.5 A 45-66 Hz output voltage: 0 input V 9.0 A 0-550 Hz motor: 3.5 kW degree of protection: IP20 frame size C 105 x 322 x 223 (WxHxD)

Product family

SINAMICS S210 servo converters (New)

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

DMM / DMM

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

AL : N / ECCN : 9N9999

Estimated dispatch time (Working Days)

5 Day/Days

Net Weight (kg)

4,800 Kg

Packaging Dimension

400,00 x 345,00 x 115,00

Package size unit of measure

MM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4034106441272

UPC

195125412514

Commodity Code

85044095

LKZ_FDB/ CatalogID

D32

Product Group

4R30

Group Code

R220

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 13.10.2021

Product class

B: return restricted, please contact your Siemens partner/contact

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Dodecachloropentacyclo[12... > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)covering any of its individual anti- and syn-isomers or any combination thereof

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Diboron trioxide CAS-No. 1303-86-2 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Diboron trioxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

	Version	Classification
eClass	1200	27-02-31-01
eClass	1400	27-02-31-01
eClass	600	27-02-31-01
eClass	710	27-02-31-01
eClass	800	27-02-31-01
eClass	900	27-02-31-01
eClass	910	27-02-31-01
ETIM	700	EC001857
ETIM	800	EC001857
ETIM	900	EC001857
