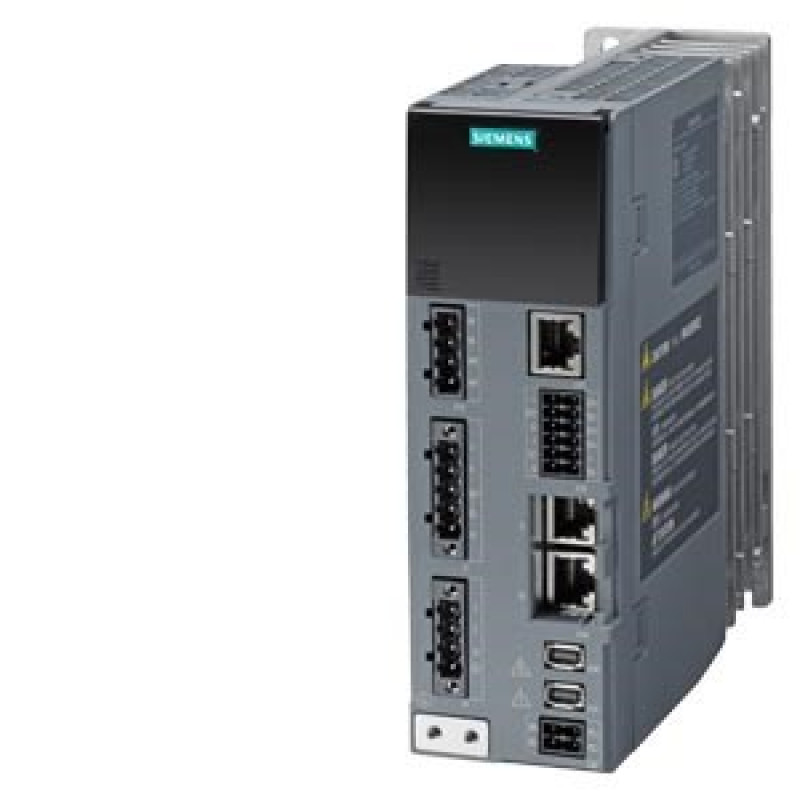

SINAMICS S210 input voltage: 200-240 V 1AC; -10%/+10%; 5.0 A; 45-66 Hz; output voltage: 0-input V 2.4 A; 0-550 Hz; motor: 0.4 kW; degree of protection: IP20; frame size B; 55 x 170 x 170 (WxHxD)

Product

Article Number (Market Facing Number)

6SL5310-1BB10-4CF0

Product Description

SINAMICS S210 input voltage: 200-240 V 1AC; -10%/+10%; 5.0 A; 45-66 Hz; output voltage: 0-input V 2.4 A; 0-550 Hz; motor: 0.4 kW; degree of protection: IP20; frame size B; 55 x 170 x 170 (WxHxD)

Product family

SINAMICS S210 servo converters (New)

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

DMM / DMM

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

AL : N / ECCN : 3A999A

Estimated dispatch time (Working Days)

5 Day/Days

Net Weight (kg)

1,300 Kg

Packaging Dimension

217,00 x 237,00 x 77,00

Package size unit of measure

MM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4034106441326

UPC

195125411531

Commodity Code

85044095

LKZ_FDB/ CatalogID

D32

Product Group

9019

Group Code

R220

Country of origin

China

Compliance with the substance restrictions according to RoHS directive

Since: 01.11.2022

Product class

C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Dodecachloropentacyclo[12... > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)covering any of its individual anti- and syn-isomers or any combination thereof

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Diboron trioxide CAS-No. 1303-86-2 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Diboron trioxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

	Version	Classification
eClass	1200	27-02-31-01
eClass	1400	27-02-31-01
eClass	600	27-02-31-01
eClass	710	27-02-31-01
eClass	800	27-02-31-01
eClass	900	27-02-31-01
eClass	910	27-02-31-01
ETIM	700	EC001857
ETIM	800	EC001857
ETIM	900	EC001857
