7MH5707-4PA01
7MH5707-4PA01

7MH5707-4PA01

Нет отзывов
Код товара: 7MH5707-4PA01
0 ₽
В наличии много 1000 шт

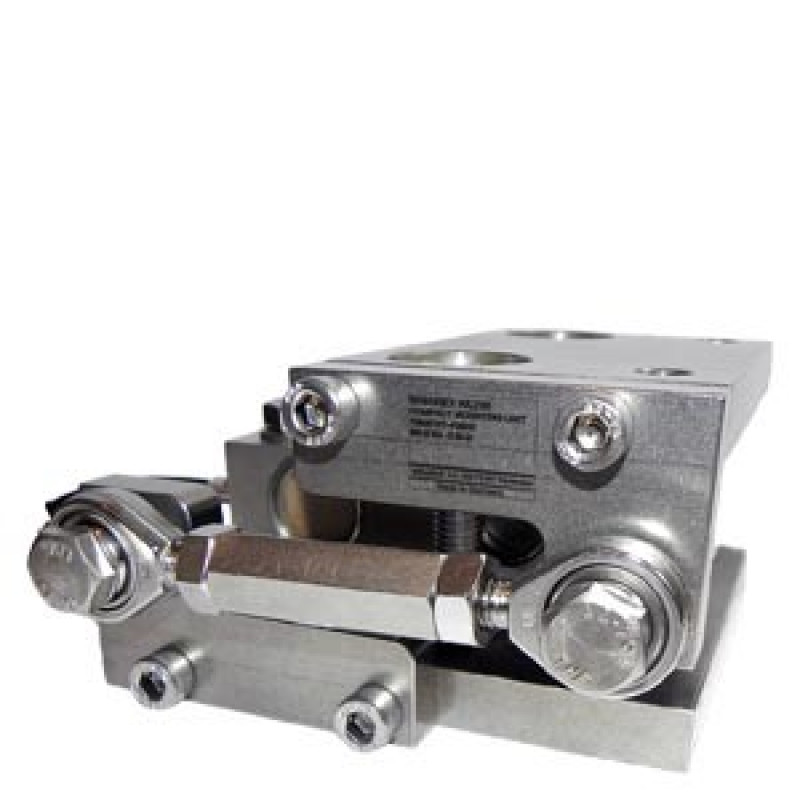

Compact mounting unit for load cell SIWAREX WL230 SB-S SA 5t Installation ready pre-assembled and predefined mounting unit with locked top plate. Incl. Lift-off protection Incl. Pendulum limitation Incl. Grounding cable Prepared for the mounting of up to two guide elements. Rated load: 5t Material: stainless steel 1.4301 and stainless steel 1.4112 Load cell not included!
Product
Article Number (Market Facing Number)7MH5707-4PA01
Product DescriptionCompact mounting unit for load cell SIWAREX WL230 SB-S SA 5t Installation ready pre-assembled and predefined mounting unit with locked top plate. Incl. Lift-off protection Incl. Pendulum limitation Incl. Grounding cable Prepared for the mounting of up to two guide elements. Rated load: 5t Material: stainless steel 1.4301 and stainless steel 1.4112 Load cell not included!
Product familyMounting unit with guide element
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group8W5 / 8W5
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)1 Day/Days
Net Weight (kg)8,700 Kg
Packaging Dimension200,00 x 160,00 x 120,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047623603672
UPCNot available
Commodity Code84239010
LKZ_FDB/ CatalogIDWT10
Product Group4913
Group CodeR3P5
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 28.10.2020
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass120027-32-03-90
eClass140027-32-03-90
eClass60027-32-03-90
eClass71027-32-03-90
eClass80027-32-03-90
eClass90027-32-03-90
eClass91027-32-03-90
ETIM700EC001195
ETIM800EC001195
ETIM900EC001195
