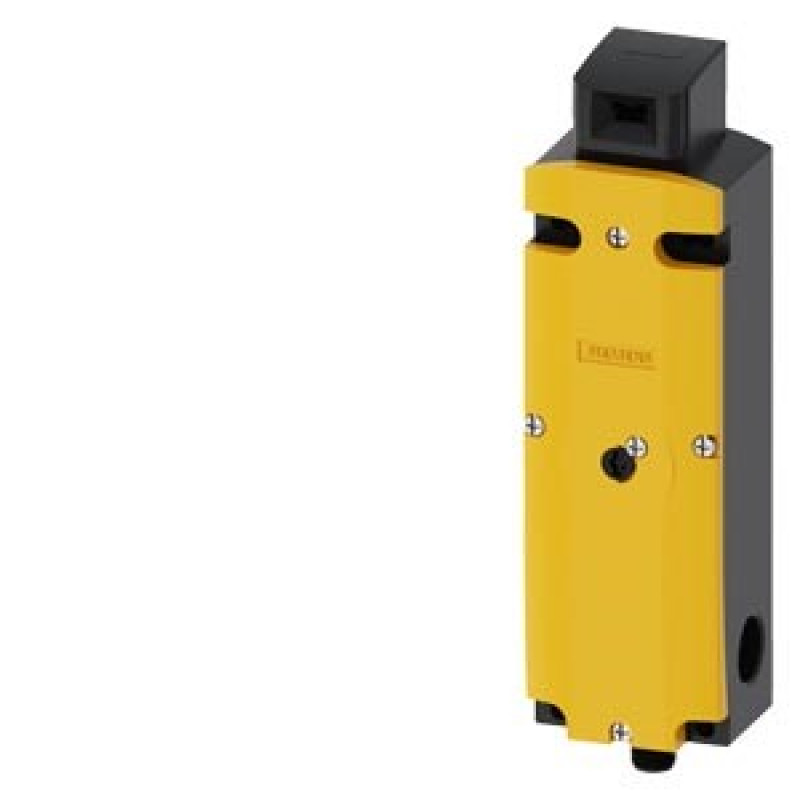

3SE5324-0SD21-1AE5
3SE5324-0SD21-1AE5

3SE5324-0SD21-1AE5

Нет отзывов
Код товара: 3SE5324-0SD21-1AE5
0 ₽
В наличии много 1000 шт
Safety switch with tumbler without magnet moni- toring,Locking force 1300 N, for SIMATIC ET200eco PN-F, 5 approach directions. Spring-locked, magnet voltage 24 V DC, wired with M12 connector, 8-pole, monitoring 2 x door Monitoring 0 x interlock, PIN1=11, PIN2=12, PIN3=21, PIN4=22, PIN5=n.a., PIN6=n.a. PIN7=E1, PIN8=E2 The matching separate Actuator 3SE5000-0AV0. /-0AW.. must be ordered separately. Connection accessory, e.g. for SIMATIC ET200eco PN-F: Y cable 6ES7194-6KC00-0XA0, Cable 8-pole 3SX5601-3SV18
Product
Article Number (Market Facing Number)3SE5324-0SD21-1AE5
Product DescriptionSafety switch with tumbler without magnet moni- toring,Locking force 1300 N, for SIMATIC ET200eco PN-F, 5 approach directions. Spring-locked, magnet voltage 24 V DC, wired with M12 connector, 8-pole, monitoring 2 x door Monitoring 0 x interlock, PIN1=11, PIN2=12, PIN3=21, PIN4=22, PIN5=n.a., PIN6=n.a. PIN7=E1, PIN8=E2 The matching separate Actuator 3SE5000-0AV0. /-0AW.. must be ordered separately. Connection accessory, e.g. for SIMATIC ET200eco PN-F: Y cable 6ES7194-6KC00-0XA0, Cable 8-pole 3SX5601-3SV18
Product family3SE5, plastic enclosures with locking force greater than 1 200 N
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)5 Day/Days
Net Weight (kg)0,502 Kg
Packaging Dimension83,00 x 213,00 x 66,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621067377
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5317
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2011
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-27-06-11
eClass140027-27-06-11
eClass60027-27-06-11
eClass71027-27-06-11
eClass80027-27-06-11
eClass90027-27-06-11
eClass91027-27-06-11
ETIM700EC002593
ETIM800EC002593
ETIM900EC002593
IDEA4005202
UNSPSC150039-12-22-13
