3RP2574-1NM20
3RP2574-1NM20

3RP2574-1NM20

Нет отзывов
Код товара: 3RP2574-1NM20
0 ₽
В наличии много 1000 шт

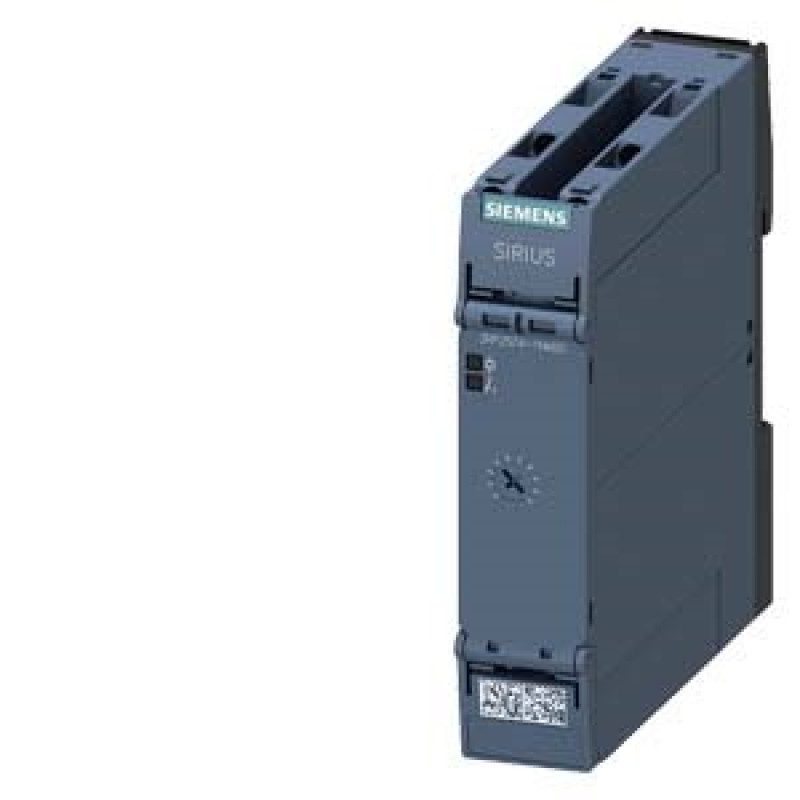

Timing relay, electronic with star-delta (wye-delta) function 1 NO delayed 1 NO instantaneous 1 time range, 1...20 s 200-240 V AC and 380-440 V AC screw terminal
Product
Article Number (Market Facing Number)3RP2574-1NM20
Product DescriptionTiming relay, electronic with star-delta (wye-delta) function 1 NO delayed 1 NO instantaneous 1 time range, 1...20 s 200-240 V AC and 380-440 V AC screw terminal
Product familySIRIUS 3RP25 timing relays 17.5 mm and 22.5 mm
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41H / 41H
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)5 Day/Days
Net Weight (kg)0,159 Kg
Packaging Dimension36,00 x 109,00 x 126,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209944374
UPC887621915186
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group4952
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 12.09.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-37-16-05
eClass140027-37-16-05
eClass60027-37-17-90
eClass71027-37-17-90
eClass80027-37-16-05
eClass90027-37-16-05
eClass91027-37-16-05
ETIM700EC001439
ETIM800EC001439
ETIM900EC001439
IDEA4005363
UNSPSC150039-12-23-29
