3SU1802-0NE00-4SB1
3SU1802-0NE00-4SB1

3SU1802-0NE00-4SB1

Нет отзывов
Код товара: 3SU1802-0NE00-4SB1
0 ₽
В наличии много 1000 шт

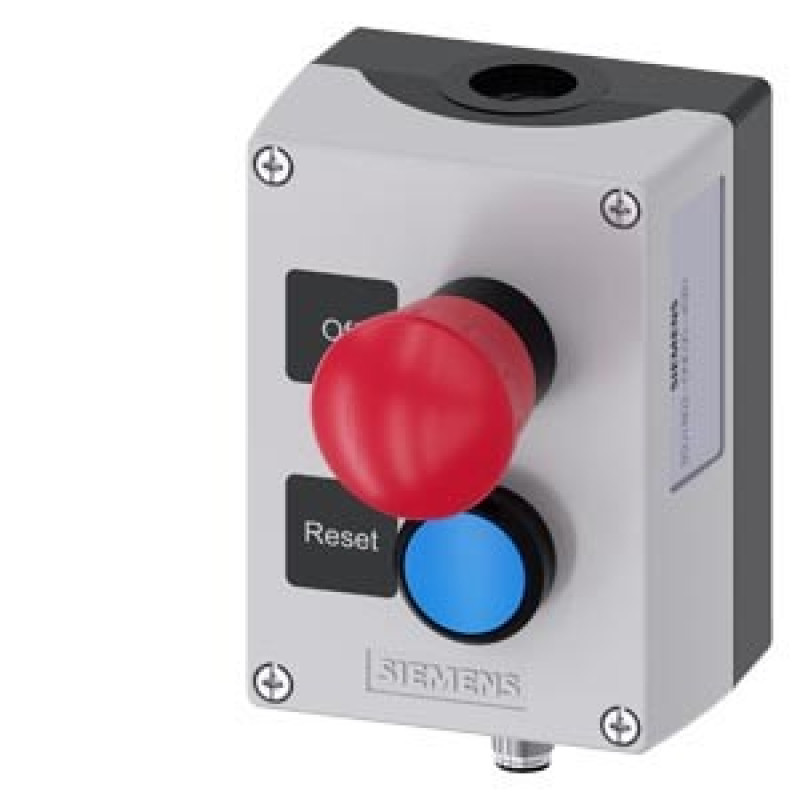

Enclosure for command devices, 22 mm, round, enclosure material plastic, enclosure top part gray, 2 control points plastic, B=Emergency stop mushroom pushbutton red, 40 mm, rotate-to-unlatch, 2x 1 NC, black label Off, A=pushbutton, blue, 1 NO, black label Reset, spring-type terminal, floor mounting, M12 connector (8-pole) bottom, insulated reserve conductors Pin assignment: PIN1=11, PIN2=12, PIN3=21, PIN4=22, PIN5=13, PIN6=n.c. PIN7=n.c., PIN8=14, two connections at 2 inputs F-DI, labels enclosed loose
Product
Article Number (Market Facing Number)3SU1802-0NE00-4SB1
Product DescriptionEnclosure for command devices, 22 mm, round, enclosure material plastic, enclosure top part gray, 2 control points plastic, B=Emergency stop mushroom pushbutton red, 40 mm, rotate-to-unlatch, 2x 1 NC, black label Off, A=pushbutton, blue, 1 NO, black label Reset, spring-type terminal, floor mounting, M12 connector (8-pole) bottom, insulated reserve conductors Pin assignment: PIN1=11, PIN2=12, PIN3=21, PIN4=22, PIN5=13, PIN6=n.c. PIN7=n.c., PIN8=14, two connections at 2 inputs F-DI, labels enclosed loose
Product familyPushbuttons and indicator lights in the enclosure for connection to SIMATIC ET 200
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)5 Day/Days
Net Weight (kg)0,513 Kg
Packaging Dimension95,00 x 172,00 x 129,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621072616
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5454
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-37-12-16
eClass140027-37-12-16
eClass60027-37-12-16
eClass71027-37-12-16
eClass80027-37-12-16
eClass90027-37-12-16
eClass91027-37-12-16
ETIM700EC000225
ETIM800EC000225
ETIM900EC000225
