3SU1803-0AB10-4HB1

3SU1803-0AB10-4HB1

3SU1803-0AB10-4HB1

Нет отзывов

Siemens

Бренд

Код товара: 3SU1803-0AB10-4HB1

0 ₽

В наличии много 1000 шт

Описание
Отзывов (0)

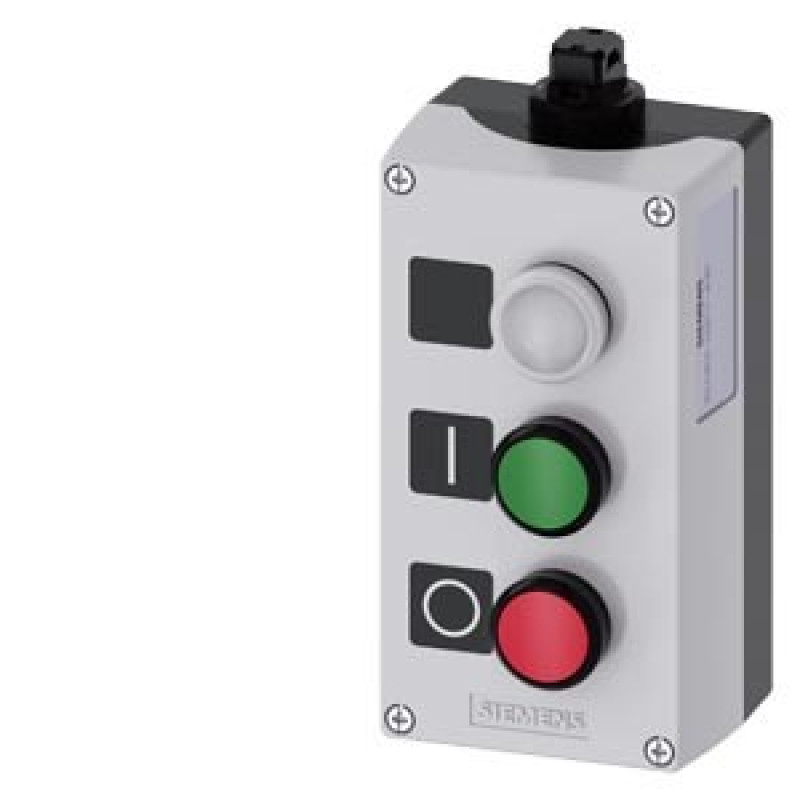

AS-Interface enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 3 control points plastic, Recess for labels, C=Indicator light clear, label without inscription, B=Pushbutton green, label: I, 1 NO, spring-type terminal, A=Pushbutton red, label: O, 1 NC, spring-type terminal, floor mounting, Insulation displacement system on top, Labels enclosed

Product

Article Number (Market Facing Number)

3SU1803-0AB10-4HB1

Product Description

AS-Interface enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 3 control points plastic, Recess for labels, C=Indicator light clear, label without inscription, B=Pushbutton green, label: I, 1 NO, spring-type terminal, A=Pushbutton red, label: O, 1 NC, spring-type terminal, floor mounting, Insulation displacement system on top, Labels enclosed

Product family

Pushbuttons and indicator lights in the enclosure for AS-Interface

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

41J / 41J

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

LAO-----

Delivery information

Export Control Regulations

AL : N / ECCN : N

Estimated dispatch time (Working Days)

5 Day/Days

Net Weight (kg)

0,590 Kg

Packaging Dimension

131,00 x 209,00 x 98,00

Package size unit of measure

MM

Quantity Unit

1 Piece

Packaging Quantity

1

Additional Product Information

EAN

4011209970403

UPC

804766474859

Commodity Code

85365080

LKZ_FDB/ CatalogID

CC-IC10

Product Group

5453

Group Code

R711

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 01.10.2014

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Diboron trioxide CAS-No. 1303-86-2 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Diboron trioxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number

Classifications

	Version	Classification
eClass	1200	27-37-12-16
eClass	1400	27-37-12-16
eClass	600	27-37-12-16
eClass	710	27-37-12-16
eClass	800	27-37-12-16
eClass	900	27-37-12-16
eClass	910	27-37-12-16
ETIM	700	EC000225
ETIM	800	EC000225
ETIM	900	EC000225
UNSPSC	1500	39-12-22-21
