6AV7863-4MA20-2AA0
6AV7863-4MA20-2AA0

6AV7863-4MA20-2AA0

Нет отзывов
Код товара: 6AV7863-4MA20-2AA0
0 ₽
В наличии много 1000 шт

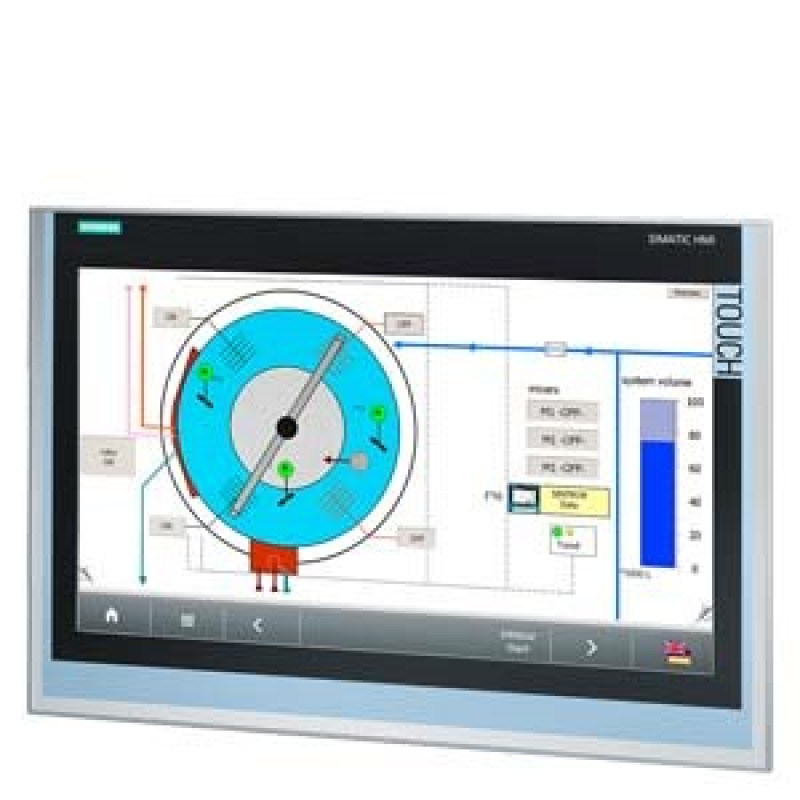

SIMATIC IFP2200 V2 Ethernet, 22" multi-touch display (16:9) with 1920x 1080 pixels resolution, built-in unit, for 24 V DC, DisplayPort and Ethernet monitor, USB on the rear side, standard design
Product
Article Number (Market Facing Number)6AV7863-4MA20-2AA0
Product DescriptionSIMATIC IFP2200 V2 Ethernet, 22" multi-touch display (16:9) with 1920x 1080 pixels resolution, built-in unit, for 24 V DC, DisplayPort and Ethernet monitor, USB on the rear side, standard design
Product familySIMATIC Industrial Flat Panel
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.05.2024
NotesThe product was replaced with the following successor product:
6AV7863-4MA10-2AA0Compare Products
Successor information
Successor6AV7863-4MA10-2AA0
Successor DescriptionSIMATIC IFP2200 V2 Extended, 22" multi-touch display (16:9) with 1920x1080 pixel resolution, built-in unit, for 24 V DC, DisplayPort, can be placed up to 100 m away HDBaseT, USB on the rear side, standard design
Price data
Region Specific PriceGroup / Headquarter Price Group2AP / 2AP
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99H
Estimated dispatch time (Working Days)1 Day/Days
Net Weight (kg)9,060 Kg
Packaging Dimension51,00 x 66,00 x 22,00
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047618122133
UPC195125320680
Commodity Code85285210
LKZ_FDB/ CatalogIDST80.1T
Product GroupX0JD
Group CodeR133
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 27.04.2021
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

2,2',6,6'-tetrabromo... CAS-No. 79-94-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

2-(2H-benzotriazol-2... CAS-No. 25973-55-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-(2H-benzotriazol-2-yl)-4,6-ditertpentylphenol (UV-328)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120019-20-02-01
eClass140019-20-02-01
eClass60019-20-02-01
eClass71019-20-02-01
eClass80019-20-02-01
eClass90019-20-02-01
eClass91019-20-02-01
ETIM700EC001428
ETIM800EC001428
ETIM900EC001428
