6ES7132-6BD20-0BA0
6ES7132-6BD20-0BA0

6ES7132-6BD20-0BA0

Нет отзывов
Код товара: 6ES7132-6BD20-0BA0
0 ₽
В наличии много 1000 шт

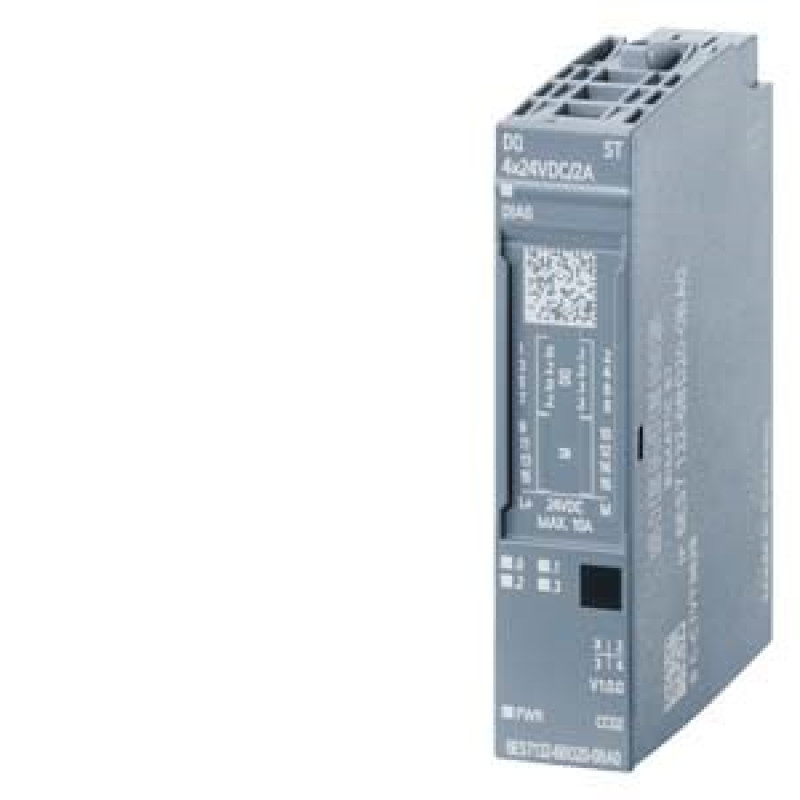

SIMATIC ET 200SP, digital output module, DQ 4x 24VDC/2A Standard, suitable for BU type A0, Color code CC02, Module diagnostics
Product
Article Number (Market Facing Number)6ES7132-6BD20-0BA0
Product DescriptionSIMATIC ET 200SP, digital output module, DQ 4x 24VDC/2A Standard, suitable for BU type A0, Color code CC02, Module diagnostics
Product familyDigital output modules
Product Lifecycle (PLM)PM300:Active Product
PLM Effective DateProduct phase-out since: 01.01.2025
NotesThe product was replaced with the following successor product:
6ES7132-6BD21-0BA0Compare Products
Successor information
Successor6ES7132-6BD21-0BA0
Successor DescriptionSIMATIC ET 200SP, digital output module DQ 4x24 V DC/2 A standard, source output (PNP,sourcing output) packing unit: 1 unit, suitable for BU type A0, color code CC02, substitute value output, module diagnostics for: short circuit to L+ and M, wire break, supply voltage
Price data
Region Specific PriceGroup / Headquarter Price Group255 / 255
List Price Show prices
Customer Price Show prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : 9N9999
Estimated dispatch time (Working Days)1 Day/Days
Net Weight (kg)0,037 Kg
Packaging Dimension6,80 x 7,80 x 2,40
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4025515080794
UPC040892933413
Commodity Code85389091
LKZ_FDB/ CatalogIDST76
Product Group4520
Group CodeR151
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 31.01.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass120027-24-26-04
eClass140027-24-26-04
eClass60027-24-26-04
eClass71027-24-26-04
eClass80027-24-26-04
eClass90027-24-26-04
eClass91027-24-26-04
ETIM700EC001599
ETIM800EC001599
ETIM900EC001599
IDEA4003566
UNSPSC150032-15-17-05
