CFP2-WDM-DS100-HL
CFP2-WDM-DS100-HL

CFP2-WDM-DS100-HL

Нет отзывов
Код товара: Cisco CFP2-WDM-DS100-HL
7 593 956 ₽
В наличии много 1000 шт

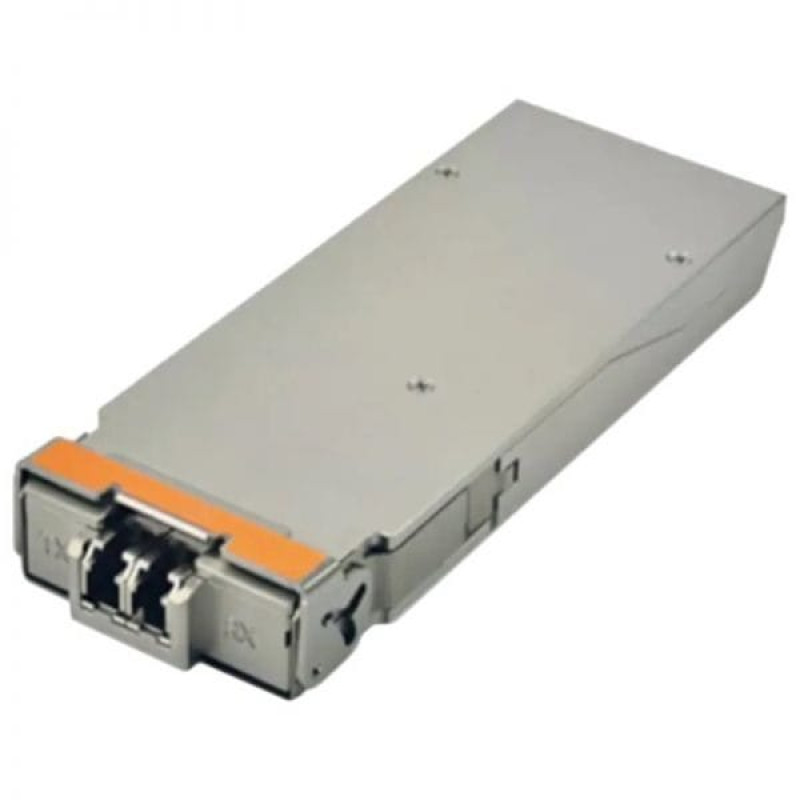

Cisco CFP2-WDM-DS100-HL offers high-performance 100G WDM networking, ideal for enterprise data centers and telecommunications networks. It features SC-FEC for enhanced error correction and is Non-TOF compliant, making it perfect for high-density, high-speed connectivity solutions.

CFP2-WDM-DS100-HL Product Highlights

  • ● 100G WDM CFP2 pluggable
  • ● SC-FEC enabled
  • ● Non-TOF compliant
  • ● High-density connectivity
  • ● Superior performance

Product Features Comparison

Model Cisco CFP2-WDM-DS100-HL Cisco CPAK-100G-LR4 Arista CF2-100G-LR4 Juniper CFP2-100G-SR4 Brocade 100G-CFP2-LR4 Huawei CFP2-WDM-100G-ER4 Finisar FTLX1471D3BCV
Data Rate **100G** **100G** **100G** **100G** **100G** **100G** **100G**
Connector Type **LC** **LC** **LC** **MTP/MPO** **LC** **LC** **LC**
Form Factor **CFP2** **CPAK** **CFP2** **CFP2** **CFP2** **CFP2** **CFP2**
Transmission Distance **High Range** **10 km** **10 km** **100 m** **10 km** **30 km** **10 km**
FEC **Supported** **Supported** **Supported** **Supported** **Supported** **Supported** **Supported**
Non-TOF **Yes** **No** **No** **No** **No** **No** **No**

CFP2-WDM-DS100-HL Product Application Scenarios

  • ● Enterprise Data Centers
  • ● Telecommunications Networks
  • ● High-Density Connectivity Solutions

Optional Add-ons

Model Description
QSFP-100G-SR4 100GBASE QSFP+ module
SFP-10G-LR 10GBASE SFP+ module
QSFP-4SFP10G-CU5M 5m QSFP+ to 4 SFP+ DAC cable

Get More Information

Discover unbeatable prices and fast shipping for the Cisco CFP2-WDM-DS100-HL. Access the detailed CFP2-WDM-DS100-HL datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.

Характеристики

Applications Data Centers, Telecommunications
Brand Cisco
Compliance RoHS, CE, FCC
Data Rate 100G
Error Correction Soft-decision Forward Error Correction (SC-FEC)
Form Factor CFP2
Humidity 5% to 95% (non-condensing)
Interface LC Connector
Model CFP2-WDM-DS100-HL
Module Type Pluggable
MTBF 1,500,000 hours
Non-TOF Yes
Operating Temperature 0??C to 70??C
Optical Power (dBm) 0 to 4
Power Consumption 24 W
Receiver Sensitivity (dBm) -10 to -8
Storage Temperature -40??C to 85??C
Technology Wavelength Division Multiplexing (WDM)
Transmission Distance Up to 10 km
Wavelength 1550 nm
