Antenna Type
MIMO
Band
Dual-Band
Brand
Aruba
Built-in Surge Protection
Yes
Connector Type
Type-N Female
Dimensions
14.6 x 7.6 x 3.5 inches
Frequency Range
2.4 GHz, 5 GHz
Gain
8/10 dBi
Impedance
50 Ohms
Ingress Protection
IP65
Max Power
50 Watts
Model Number
J9169A
Mounting Options
Pole/Mast
Number of Elements
3
Operating Temperature
-40°C to +65°C
Polarization
Dual-linear polarization
Product Name

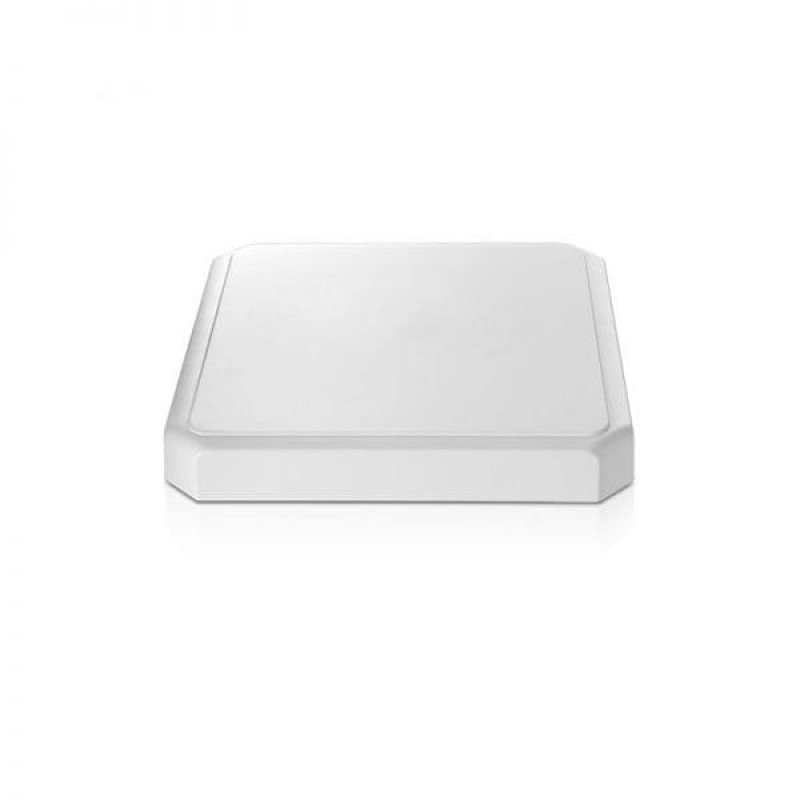

HP In/Out Sector 8/10dBi MIMO 3 Elmt Ant
Radome Material
UV-stabilized plastic
Sector Width (H-plane)
65 degrees
Storage Temperature
-40°C to +70°C
Wind Survival
Up to 200 km/h
