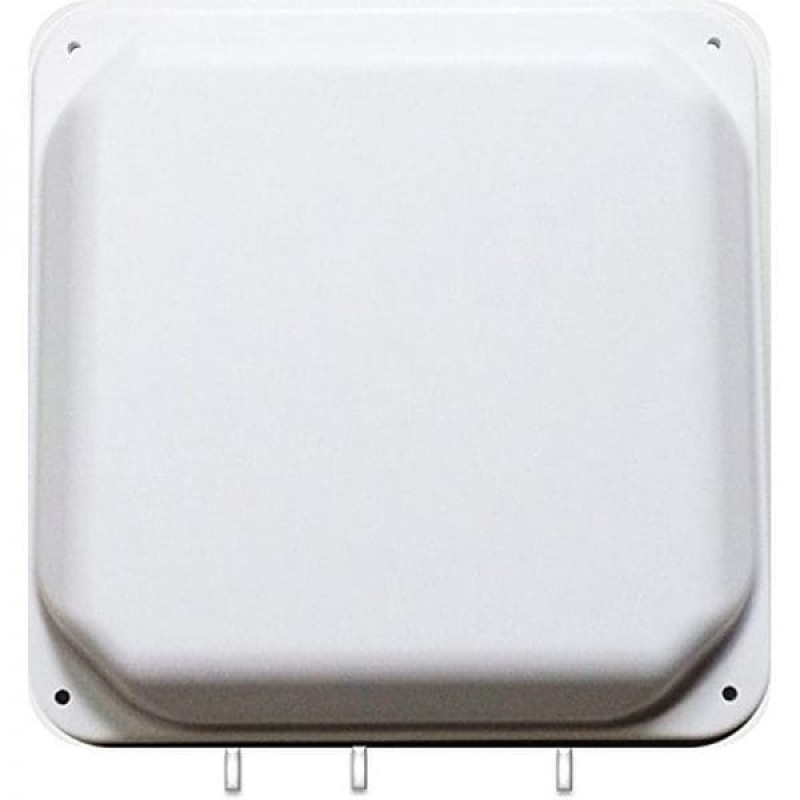

AP-ANT-38 Dual Band 60x60deg 8dBi +/- 45 и V Pol 3 Element MIMO 3xRPSMA Pigtail антенна
Antenna Polarization
+/- 45?? and Vertical Polarization
Antenna Type
AP-ANT-38 Dual Band
Application
Indoor/Outdoor
Beamwidth (Horizontal)
60??
Beamwidth (Vertical)
60??
Brand
Aruba
Cable Type
Pigtail
Certifications
FCC, CE
Color
White
Connector Type
3x RPSMA
Dimensions
200 x 200 x 37 mm
Frequency Bands
Dual Band
Gain
8dBi
Impedance
50 Ohms
MIMO
3x MIMO
Model
JW016A
Mounting
Pole/Wall Mount
Number of Elements
3 Element
Operation Temperature
-40??C to +70??C
Warranty
1 Year
