Architecture
Skylake SP
Base Frequency
2.4GHz
Brand
HPE
Cache
35.75 MB L3
Compatibility
HPE DL560 Gen10 Server
Core Count
24-core
Execution Technology
Intel Hyper-Threading Technology
Instruction Set
64-bit
Integrated Graphics
Not applicable
Max PCI Express Lanes
Dependent on server configuration
Max Turbo Frequency
3.9GHz
Memory Support
Dependent on server system
Processor type

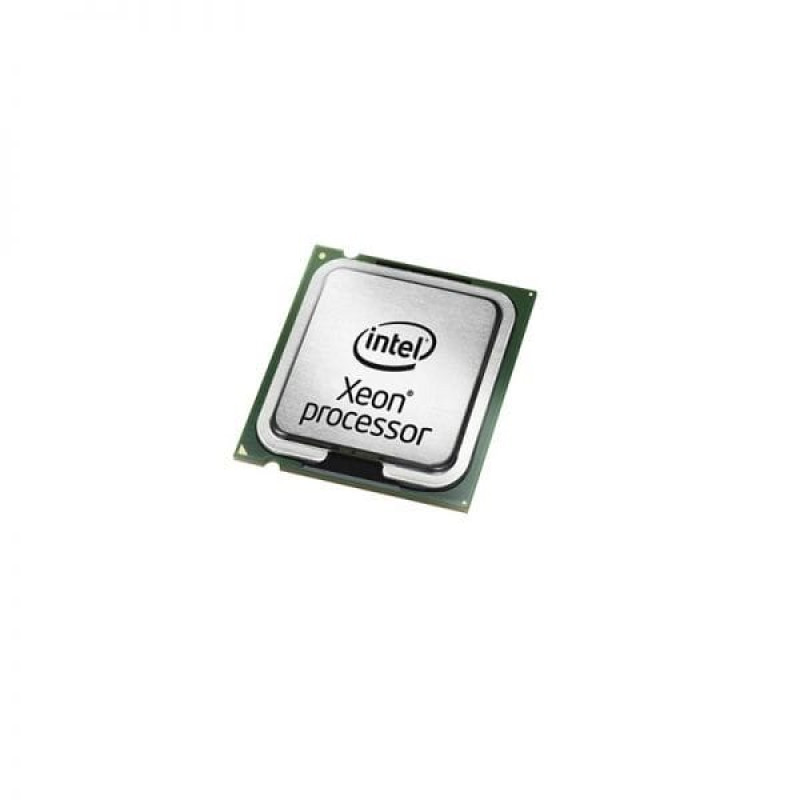

Intel Xeon-Platinum 8260
Product Code
P02959-B21
Product Name
HPE DL560 Gen10 Intel Xeon-Platinum 8260 Processor Kit
Scalability
4S/2S compatible
Security Features
Intel AES New Instructions, Secure Key
Socket Type
Supported in HPE Servers with compatible socket
TDP
165W
Technology
14nm Process Technology
Thermal Solution
Specification depends on server configuration
Virtualization Technology Support
Intel VT-x with Extended Page Tables (EPT)
