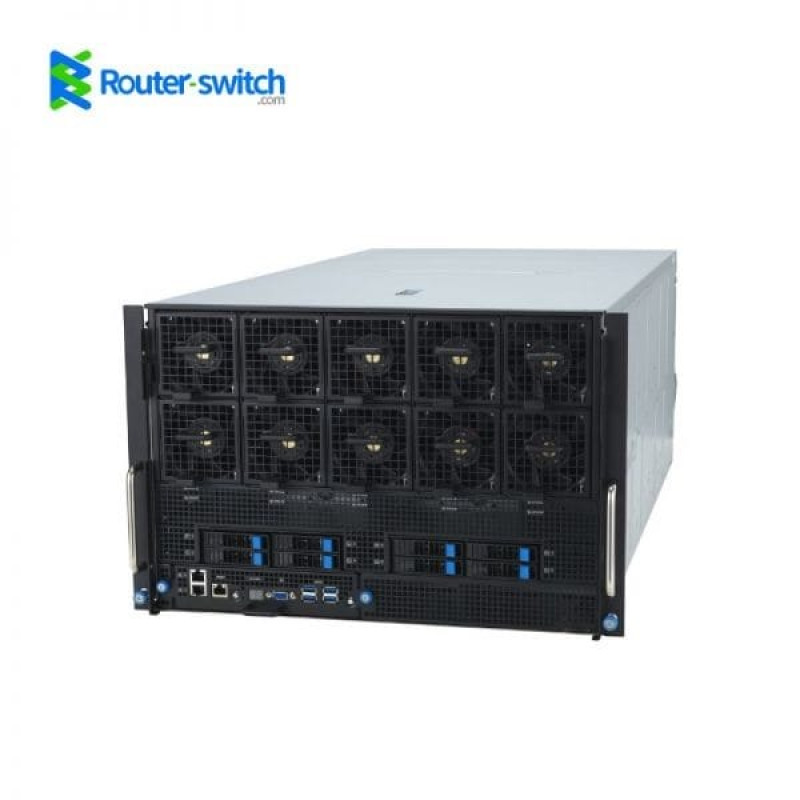

Asus Nvidia H200 AI Server Bundle11

Asus Nvidia H200 AI Server Bundle11

Asus Nvidia H200 AI Server Bundle11

Нет отзывов

ASUS

Бренд

Код товара: Asus AI Servers Bundle#11

22 801 498 ₽

В наличии много 1000 шт

The ASUS AI Servers Bundle#11 is an advanced server solution designed for demanding AI tasks and enterprise-level applications. Featuring cutting-edge computation power with Intel 5th Gen 8558 CPUs, high-speed networking with ConnectX-7 400G NICs, and expansive memory capacity, this bundle ensures superior performance and reliability. Ideal for data centers, research institutions, and AI development environments.

This bundle includes the following products:

-1 x SXM5 H200 GPU (8)
-2 x Intel 5th Gen 8558 CPUs (48C)
-32 x 64GB DDR5 4800
-8 x ConnectX-7 400G NIC
-1 x Dual Port 10G NIC
-4 x 3.84TB NVMe U3

Asus AI Servers Bundle#11 Product Highlights

4th/5th Gen Intel® Xeon® Scalable Processors
PCIe 5.0 Ready
Powerful Performance
Enhanced IT-infrastructure management

Asus AI Servers Bundle#11 Product Application Scenarios

High Performance Computing
Generative AI
Deep Learning/Machine Learning
Data Analysis
Scientific Research

Get More Information

Discover unbeatable prices and fast shipping for the ASUS Asus AI Servers Bundle#11. Access the detailed Asus AI Servers Bundle#11 datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.

Характеристики

A or S will be hot-swappable -[PCIe Switch directly] Front: 8 NVMe-[CPU directly] Rear: 2 NVMe(CPU2)/SATA(PCH)

Capacity Maximum up to 4 + 8 TB (DDR5 + Crow Pass)

Dimension 885mm x 447mm x 306.65mm

Environment -Operation temperature: 10℃~ 35℃-Non operation temperature: -40℃~ 70℃-Non operation humidity: 20% ~ 90% ( Non condensing)

Front I/O Ports -4 x USB3.2 Gen1 ports-1 x VGA port-2 x 10Gb RJ45 LAN module (Intel-x710 Based)-1 x Mgmt LAN-1 x locate button-1 x power button

Gross Weight Kg (CPU, DRAM & HDD not included, Packing inclu 174 kg

I = internal 10 x 2.5” hot-swap drive bays (8 NVMe, 2 NVMe/SATA)

LAN -2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller)-1 x Management Port

M.2 ESC N8-E11 H100 SKU:2 x M.2 Gen5 x4 link (CPU1) / 2 x M.2 Gen3 x2 link (PCH)ESC N8-E11V H200 SKU:2 x M.2 Gen3 x2 link (PCH)

Memory Size 512GB, 256GB, 128GB Intel® Optane™ persistent memory 300 series

Memory Type DDR5 4400 RDIMM/RDIMM 3DS (2DIMM per Channel)

Net Weight Kg (CPU, DRAM & HDD not included) 113 kg

OS Support -Windows Server-RedHat® Enterprise Linux-Rocky-Ubuntu-VMware

Out of Band Remote Management On-Board ASMB11-iKVM

Power Supply (following different configuration by region) 4+2 3000W 80 PLUS Titanium Power Supply

Processor Support 2 x Socket-4th Gen Intel® Xeon® Scalable Processors-5th Gen Intel® Xeon® Scalable Processors

Rear I/O Ports -1 x locate button-1 x power button

SAS Controller Optional Kits:-Broadcom MegaRAID 9560-16i-Broadcom RAID CARD 9540-8i

SATA Controller Intel PCH Integrated

Slot Type ESC N8-E11 H100 SKU:12 x PCIe Gen5 slots[PCIe Switch directly]- 8 x PCIe Gen5 x16 link (LP, HL)[CPU directly]- 1 x PCIe Gen5 x16 link (FH, HL)* + 1 x PCIe Gen5 x16 link (FH, HL)*- 1 x PCIe Gen5 x8 link (FH, HL) + 1 x PCIe Gen5 x8 link (FH, HL)*Support PCIe x16 link for DPUESC N8-E11V H200 SKU:10+1 x PCIe Gen5 slots[PCIe Switch directly]- 8 x PCIe Gen5 x16 link (LP, HL)[CPU directly]- 1 x PCIe Gen5 x16 link (FH, HL)* + 1 x PCIe Gen5 x16 link (FH, HL)*- 1 x PCIe Gen4 x8 link from CPU2 DMI (FH, HL)***Support PCIe x16 link for DPU**For Raid card to connect storage[BF3 operation temperture 30℃ when using transceiver]

Software ASUS Control Center

Switch/LED Front :-1 x Power Button/LED-1 x Location Button/LED-1 x Message LED-1 x Q-Code/Port 80 LEDRear :-1 x Location LED-1 x Power Button/LED

Total PCI/PCI-X/PCI-E/PIKE Slots 12 (H100) or 10+1 (H200)

Total Slots 32 (8-channel per CPU, 16 DIMM per CPU)

VGA Aspeed AST2600 64MB
