Airflow
Front to Back (C2P)
Brand
Mellanox
Compliance
RoHS, CE, FCC
CPU
x86
Depth
Standard
Form Factor
4U Modular Open Ethernet Chassis
Forwarding Rate
9.52 Bpps
Humidity
10% to 90% non-condensing
Line Card Support
100GbE
Management Ports
1 x RS232 serial port, 1 x 100/1000BASE-T port
Model

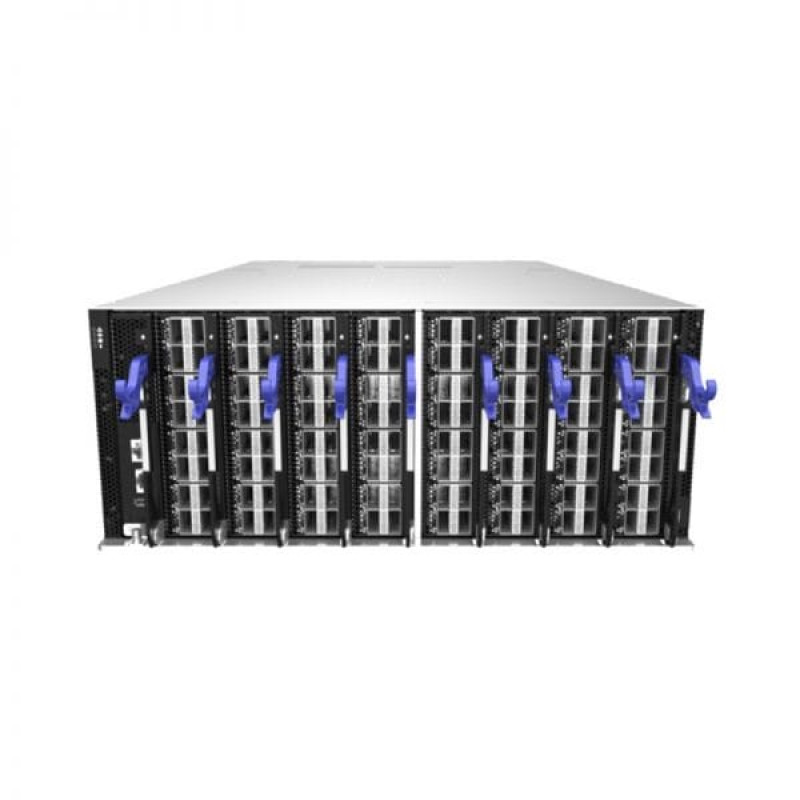

NVIDIA Mellanox MSN4800-WS4R
Network Processor
Spectrum-3
Number of Ports
Depends on the installed line cards
Operating Temperature
0°C to 40°C
Power Supplies
4 (AC)
Rack Mount Kit
Included (Rail Kit)
Redundancy
Power Supply, Fans
Storage Temperature
-40°C to 70°C
Supported Protocols
EthernetIPv4/v6VxLANBGPOSPF
Switching Capacity
12.8 Tbps
