ACLs
Supports up to 64K
Buffer Size
32MB
Compliance
RoHS, EMI FCC Part 15 Class A
Cooling
Front-to-back, hot-swappable fans
Form Factor
1U Rack Mountable
Forwarding Rate
4.7 Bpps
Jumbo Frames
Up to 9,216 bytes
Latency
300ns
Layer 2 Multicast
48K
Management Interface
RJ-45 console port
Maximum Data Rate
100Gbps
Model Name

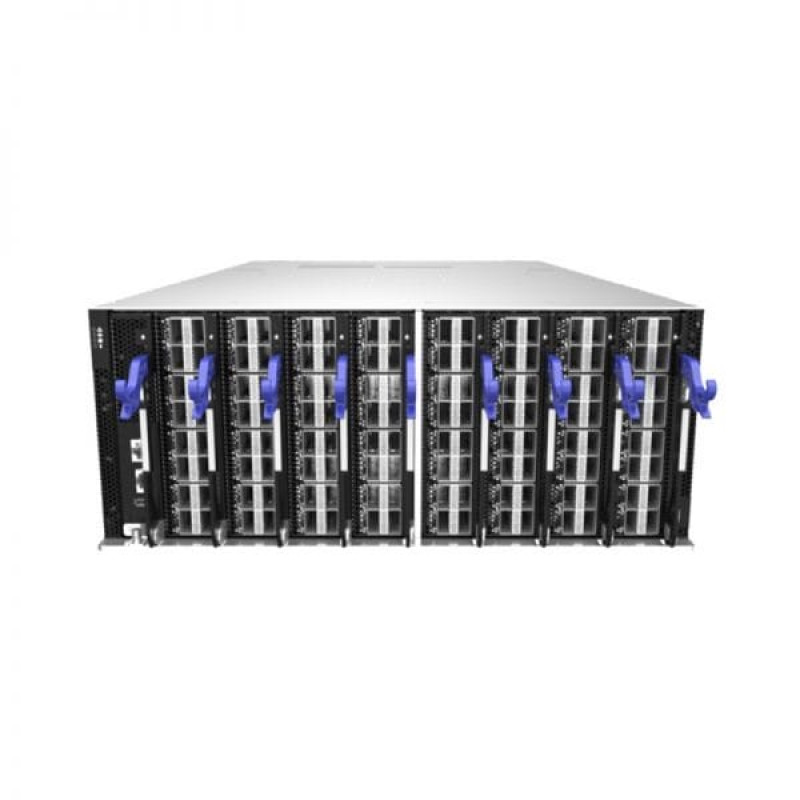

NVIDIA Mellanox MSN4800-C16
MTBF
Over 1,000,000 hours
Operating Humidity
5% to 95% non-condensing
Operating System
Cumulus Linux / ONIE
Operating Temperature
0°C to 45°C
Port Configuration
16 QSFP28 ports
Power Supply
Dual, hot-swappable
Product Line
SN4800 Series
Spanning Tree Protocol
STP, RSTP, MSTP
Storage Temperature
-40°C to 70°C
Switching Capacity
6.4 Tbps
VLAN IDs
Supports up to 4K
