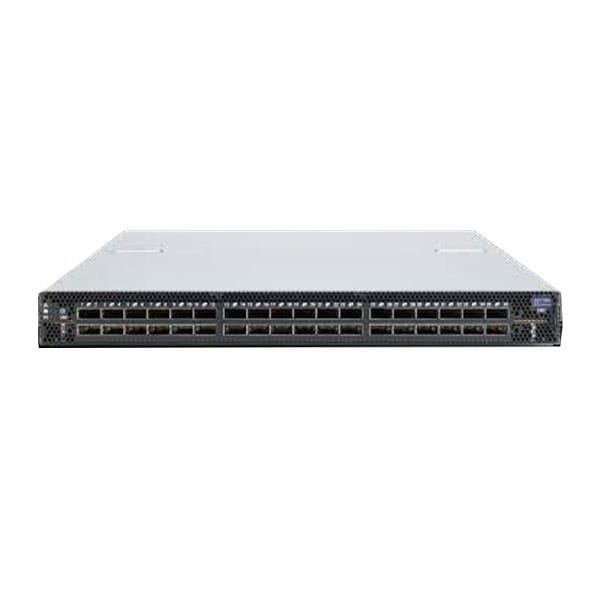

Маршрутизатор InfiniBand 1U 100 Гбит/с на базе Switch-IB 2, 36 портов QSFP28, 2 блока питания (переменного тока), двухъядерный процессор x86, стандартная глубина, воздушный поток P2C, комплект направляющих
Aggregate Data Rate
3.6Tb/s (Full Duplex)
Airflow
Port-to-Connector (P2C)
Chassis
1U Rack-mountable
Compliance
RoHS-6 Compliant
Cooling
Hot-swappable Fans
Depth
Standard Depth
Forwarding Rate
4 Bpps
Management
Out-of-Band Management via Dedicated Ports
Max Power Consumption
450W
Model
MSB7880-ES2F
Network Protocols
InfiniBand
Operating Temperature
0°C to 45°C
Ports
36 QSFP28 Ports
Power Supplies
2 (AC) Redundant Power Supplies
Processor
x86 Dual Core
Product Type
100Gb/s InfiniBand 1U Router
Rail Kit
Included
Relative Humidity
5% to 95% (non-condensing)
Storage Temperature
-40°C to 70°C
Switching Capacity
7.2Tb/s
