Airflow Direction
C2P (reverse)
Brand
Mellanox
Compatibility
OSFP Modules
Compliance
RoHS, FCC Class A
Cooling
Hot-swappable Fan Modules
Data Rate
400Gb/s
Dimensions (H x W x D)
1.75 x 17.5 x 21 in (4.45 x 44.45 x 53.34 cm)
Encryption
Data Encryption at Line Rate
Front Panel
Status LEDs
Humidity Operating
5% to 95%, non-condensing
Management Type
Unmanaged
Model

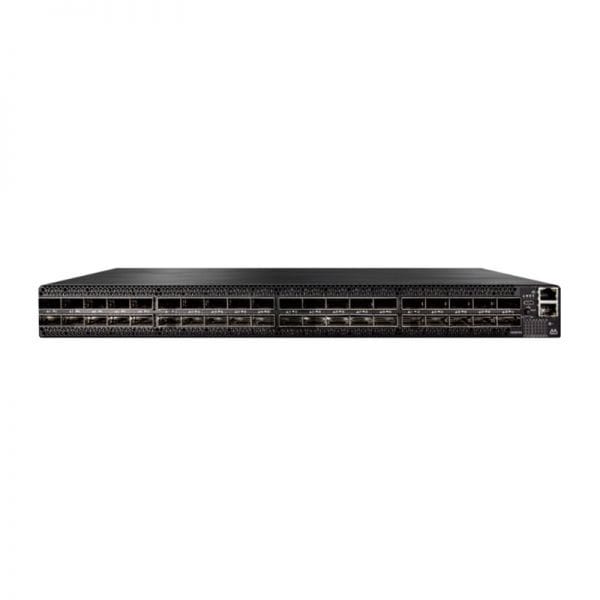

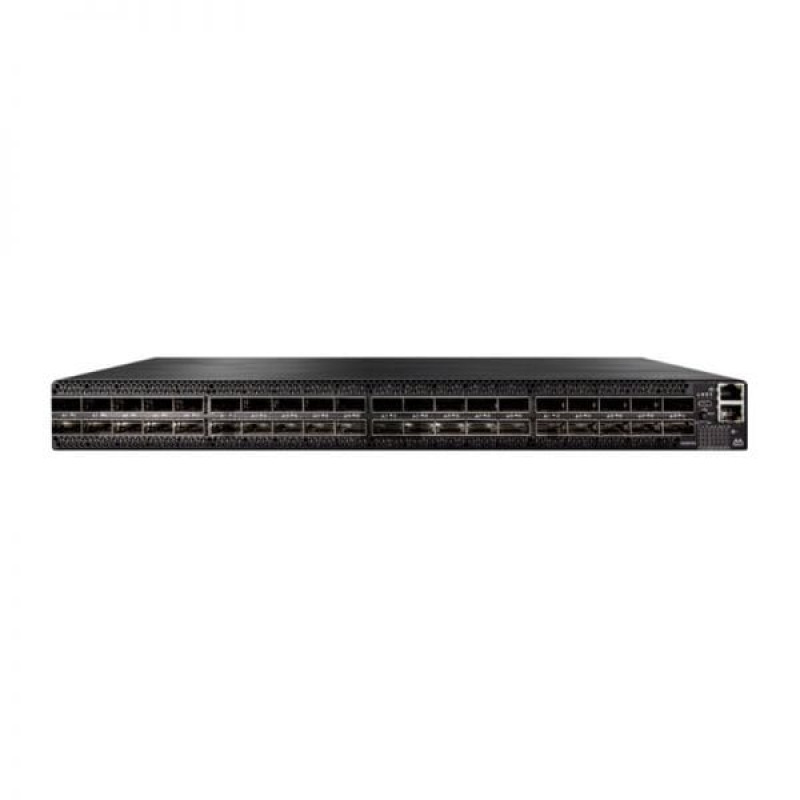

NVIDIA Mellanox MQM9790-NS2R
MTBF
200,000 Hours
Operating Temperature
0°C to 45°C
Port Count
64
Port Type
32 OSFP
Power Consumption
850W
Power Supply
Dual Redundant Power Supplies
Storage Temperature
-40°C to 70°C
UL Certification
UL/CSA 60950-1
