Compliance
RoHS, CE, FCC
Cooling
Hot-swappable fans
Dimensions
Height: 22U, Width: 19 inches, Depth: 36 inches
Form Factor
Rack-mountable
Latency
1.1 microseconds
Management
GUI, CLI, and web-based interface
Model

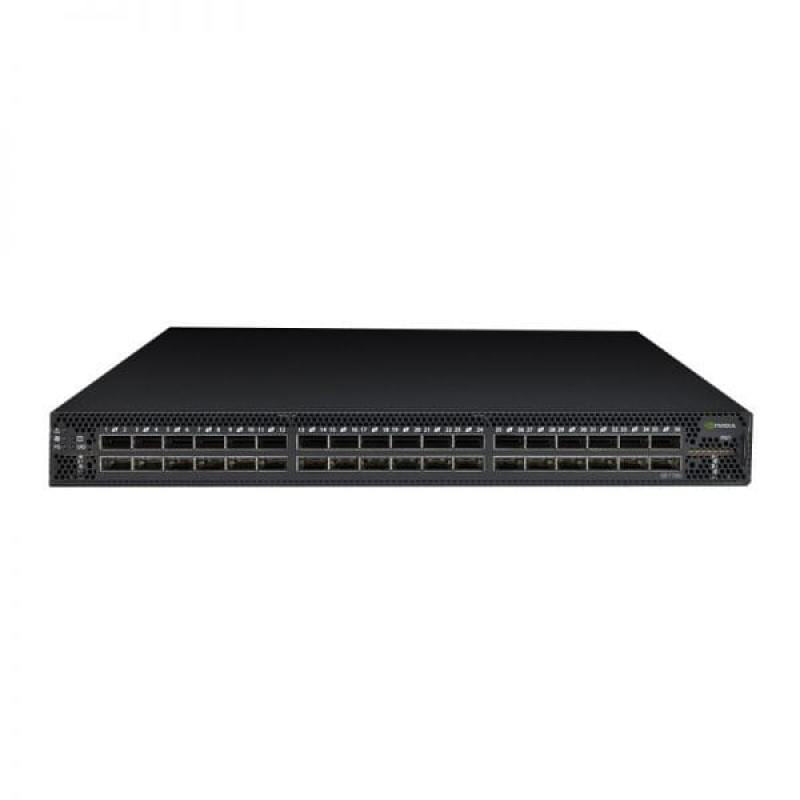

NVIDIA Mellanox MCS9510
MTBF
200,000 hours
Network Type
InfiniBand
Operating Temperature
0°C to 40°C
Port Speed
200 Gbps per port
Ports
1,024 NDR ports
Power Consumption
12.5 kW
Power Supply
AC 220-240V
Relative Humidity
5% to 95% non-condensing
Security Features
ACLs, Denial of Service Protection
Software Support
NVIDIA Cumulus Linux OS
Storage Temperature
-20°C to 70°C
Switching Capacity
800Tb/s
Virtualization Support
SR-IOV, VXLAN
Warranty
3-year manufacturer warranty
