Bandwidth Capacity
320Tb/s
Brand
Mellanox
Chassis Type
InfiniBand
Compatible Modules
Transceivers, Cabling
Cooling System
Redundant Fans
Form Factor
Chassis
Humidity Range
5% to 95% non-condensing
Management Ports
Ethernet, RS-232
Model

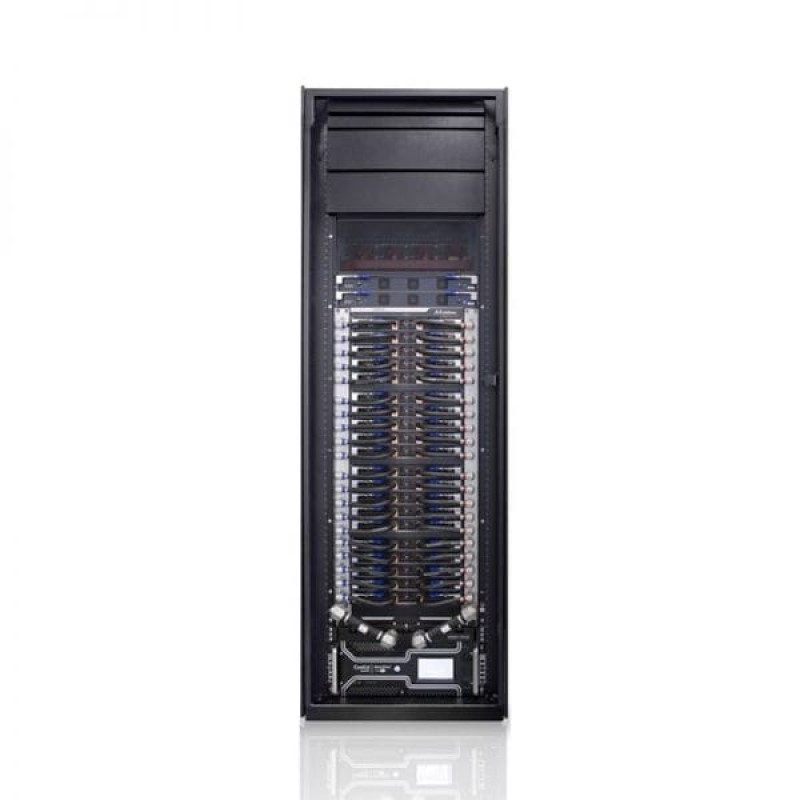

NVIDIA Mellanox MCS8500
Network Protocols
InfiniBand, Ethernet
Number of Ports
800
Operating System
Onyx
Operating Temperature Range
0°C to 40°C
Port Speed
200Gb/s
Power Supply Units (Max Supported)
16 (N+N)
Power Supply Units (Standard)
9 (N+1)
Redundancy
Power Supply and Cooling
Regulatory Compliance
CE, FCC
Security Features
Encryption, Access Control
Storage Temperature Range
-40°C to 70°C
Supported Topologies
Mesh, Fat Tree
