Backplane switching capacity
64 Gbit/s
Combo GE Port Type
10/100/1000 BASE-T+100/1000 BASE-X
DDR memory
128 MB
Dimensions: width x depthx height
442 mm x 420 mm x43.6 mm
Flash Memory
16 MB
Forwarding Performance
9.6 Mpps
Management Interface
Console port, Telnet, SSH, and SNMP
Number of Ports
24 100 BASE-X ports, 2 Combo GE ports, and 2 SFP GE ports
Power Consumption
30 W
Processor
Dominant frequency: 300 MHz

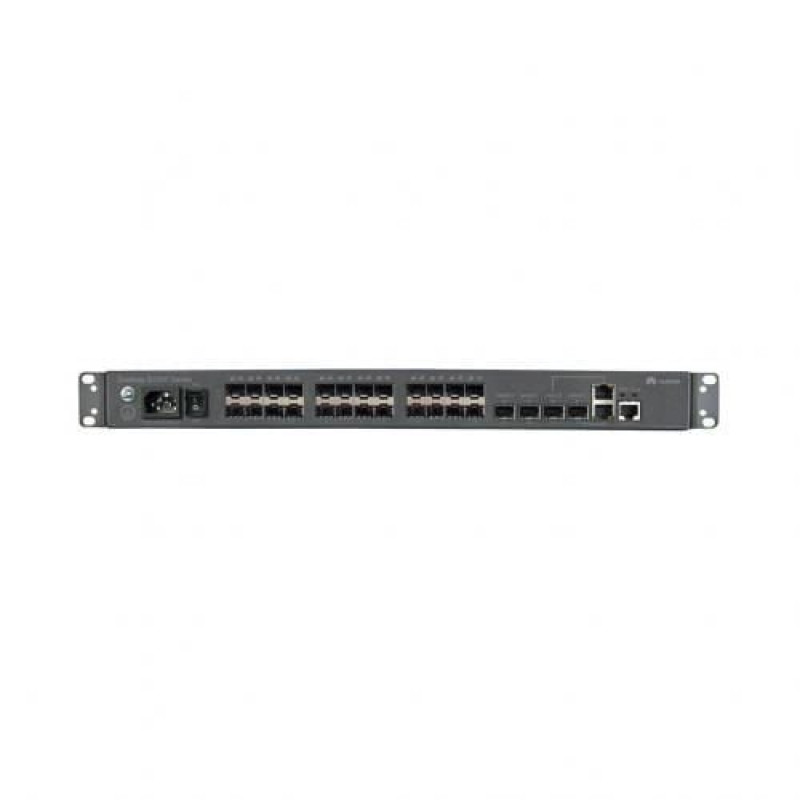

Product Model
LS-S3328TP-EI-24S-DC
Security Features
Access control lists, AAA authentication, MAC address authentication
Software Compatibility
Huawei Versatile Routing Platform (VRP)
Specifications
Details
Switching Capacity
12.8 Gbit/s
VLAN features
Supports up to 4096 VLANs.
VLAN Support
IEEE 802.1Q VLAN, MAC VLAN, and protocol-based VLAN
