Brand
Huawei
Compliance
CE, FCC, RoHS
Dimensions (W x D x H)
442 mm x 420 mm x 43.6 mm
Energy Efficiency
Energy-Efficient Ethernet (EEE) support
Fan Box
2*FAN Box
Forwarding Rate
Up to 1801 Mpps
Humidity
5% to 95% (non-condensing)
IPv6 Support
Full IPv6 support including dual stack
Jumbo Frame
Up to 9216 bytes
Latency
Less than 2 microseconds
Layer 3 Features
Static routing, RIP, OSPF, IS-IS, BGP
MAC Address Table
288K MAC address entries
Management and Maintenance
SNMP v1/v2c/v3, RMON, web interface, SSH
Operating Temperature
0°C to 45°C
Port Configuration
48-Port 10G SFP+, 6-Port 40GE QSFP+
Power Module
Without Fan and Power Module
Product Name

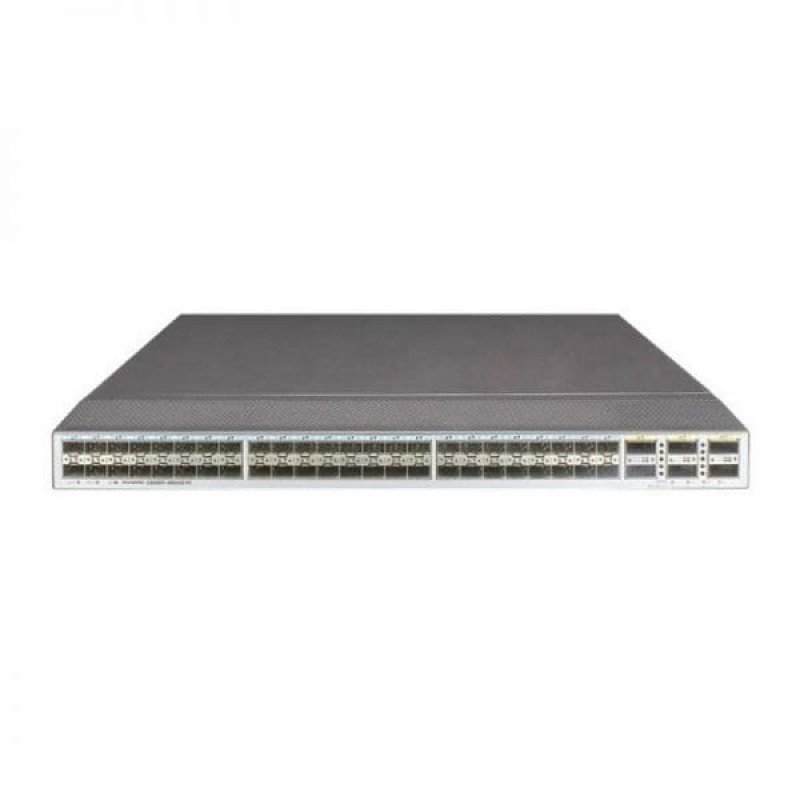

CE6856-48S6Q-HI Switch
Quality of Service (QoS)
Hardware-based traffic queuing and prioritization
Reliability
VRRP, BFD for OSPF/BGP
Security Features
ACLs, 802.1X, port security, IP+MAC+port binding
Storage Temperature
-40°C to +70°C
Switching Capacity
Up to 2.4 Tbps
VLAN IDs
4K
