Brand
Aruba
Compliance and Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Dimensions (W x D x H)
17.42 x 9.69 x 1.73 in
Environment
Operating Temperature: 0° to 45°C, Storage Temperature: -40° to 70°C
Form Factor
Rack-mountable
Latency
2.2 °s (LIFO 64-byte packets)
Layer Supported
Layer 2 switching with Layer 3 static routing
MAC Address Table Size
16K entries
Management Features
SNMP, RMON, Web Interface, CLI
Memory and Processor
ARM Cortex-A9 @ 800MHz with 128 MB SDRAM, 64 MB Flash
Network Protocols
IPv6 management, DHCP server
Performance
77.4 Mpps
Ports
24 x 10/100/1000 (Gigabit Ethernet), 2 x 10Gb Ethernet
Power Consumption
Maximum: 29.5 W
Power Supply
Internal power supply
Product Model
JL170A
Product Name

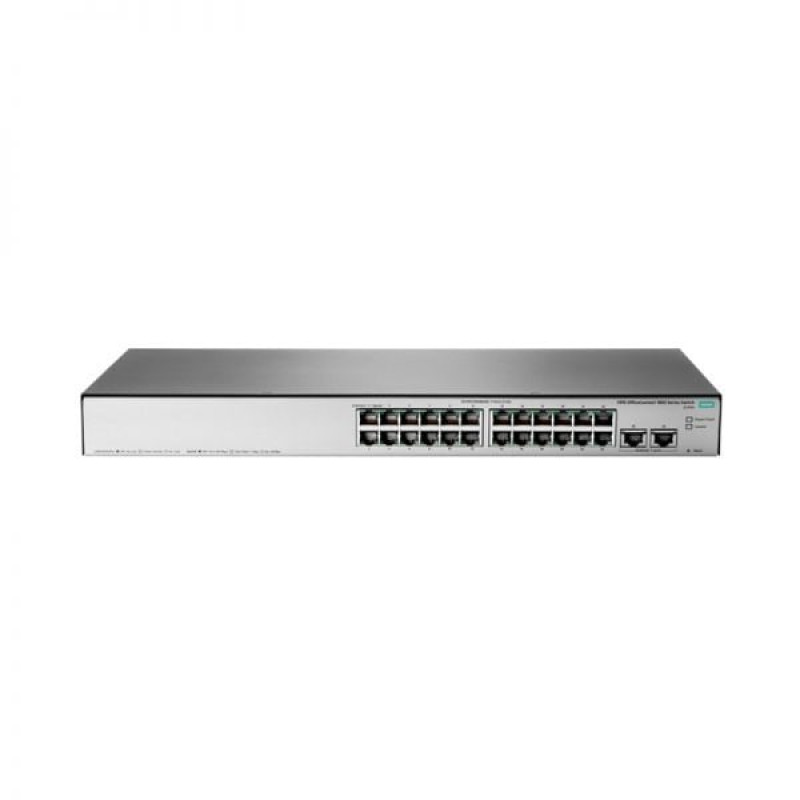

HPE OfficeConnect 1850 24G 2XGT Switch
Quality of Service (QoS)
Advanced QoS with IPv4/IPv6 ingress traffic filtering and priority tagging
Security Features
Access Control Lists (ACLs), IEEE 802.1X RADIUS, SSL
Switch Class
Managed
Switching Capacity
128 Gbps
Warranty
Limited Lifetime Warranty
