Authentication Method
RADIUS, TACACS+
Brand
Aruba
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.3ae, IEEE 802.3an
Dimensions (WxDxH)
17.32 in x 6.3 in x 1.73 in
Encryption Algorithm
SSL
Features
Flow control, full duplex capability, Layer 3 switching, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support
Flash Memory
128 MB
Jumbo Frame Support
Yes, up to 10KB
MAC Address Table Size
32K entries
Management
Web-based management, CLI, SNMP, RMON
Operating Humidity Range
15% to 95% (non-condensing)
Operating Temperature
0°C to 45°C
Performance
Switching capacity: 320 GbpsThroughput: up to 238 Mpps
Ports
12 x 10GBase-T + 4 x 10 Gigabit SFP+
Power Consumption Operational
Max 110 W
Power Device
Internal power supply
Product Model
JH295A
Product Name

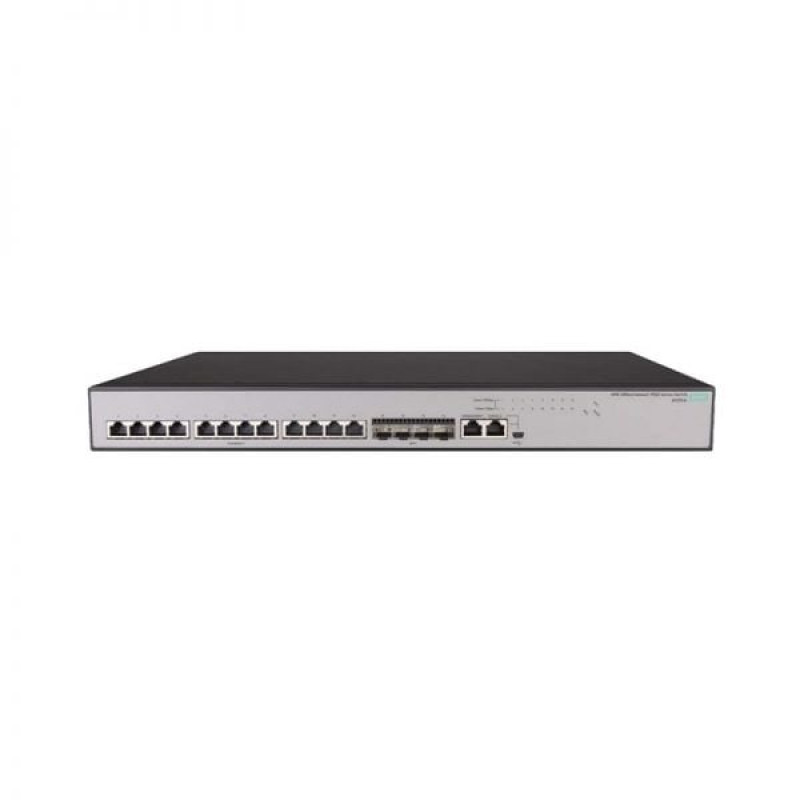

HPE OfficeConnect 1950 12XGT 4SFP+ Switch
Product Type
Switch - 16 ports - L3 - Managed
RAM
1 GB
Routing Protocol
Static IPv4 routing, Static IPv6 routing
Status Indicators
Power, link/activity, fan, temperature
