SRS2000-SW26HH2G24T
SRS2000-SW26HH2G24T

SRS2000-SW26HH2G24T

Нет отзывов
Код товара: MRD SRS2000-SW26HH2G24T
23 263 ₽
В наличии много 1000 шт

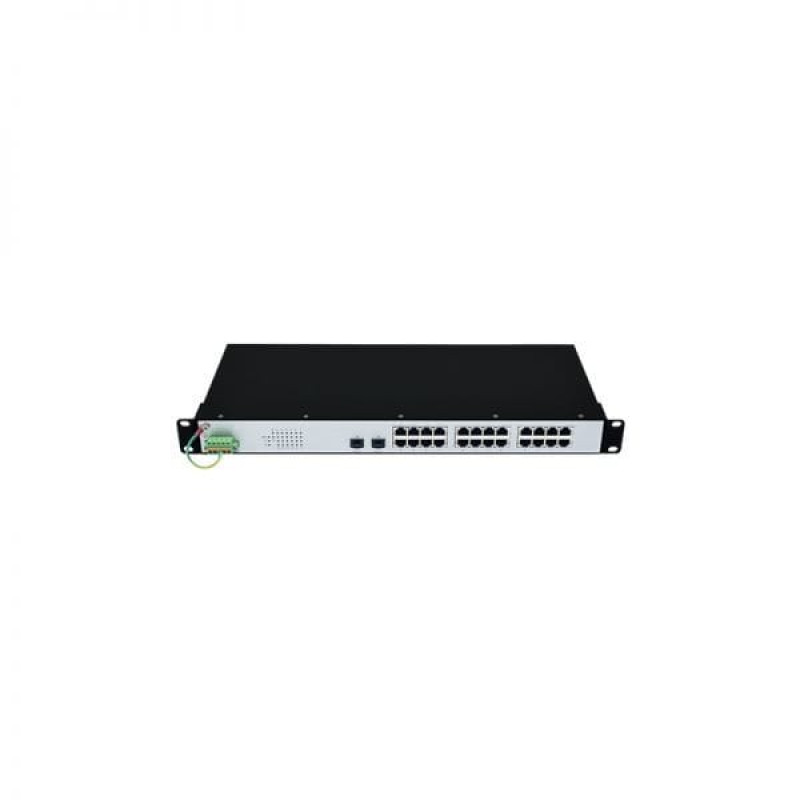

26-port WEB managed industrial switch made from Anti-corrosion aluminum alloy, support 2 100/1000BaseX SFP ports (SFP not included) + 24 10/100/1000BaseT ports. 1U high, rack-mounted. IP40 protection class. Operating temperature -40° C ~ +75°C. Dual isolated power inputs (100~240V), with one power cord.

Quick Spec

Table 1 shows the quick spec of the SRS2000-SW26HH2G24T

Model SRS2000-SW26HH2G24T
Interface Configuration 2 x 100/1000BaseX SFP
24 x 10/100/1000BaseT
Input Voltage 100 ~ 240V, dual inputs
Fansless Yes
Backplane Bandwidth 52 Gbps
Installasion Rack-Mounted
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 440mm × 43.8mm × 200mm
17.33 inch x 1.73 inch x 7.87 inch
Weight 1.7 kg
3.75 lb
MTBF ≥300,000H
Operating Temperature -40 °C~ 75 °C
-40°F ~ 167°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A

Product Features

  • ● All 1000M ports
  • ● 52Gbps backplane bandwidth
  • ● Wide and varied power supply range
  • ● Non-rust aluminum alloy housing and torx screws
  • ● Support WEB management
  • ● All ports support line speed forwarding and automatic turnover, supporting long-distance transmission
  • ● Support one-click port isolation and self-healing ring network
  • ● Support one-click factory settings restoration and restart
  • ● Support uploading and downloading configuration files
  • ● Lighting Protection: power port ±4KV, RJ45 port ±4KV
  • ● IP40 Protection Class
  • ● Easy to install, plug and play without configuring
  • ● Fanless design, wide working temperature and quiet operation

    Supported Options

    Table 2 shows the supported options of the SRS2000-SW26HH2G24T

    MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
    MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
    MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
    MRD-MGIGA-GSX-850 Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
    MRD-MGIGA-GSX Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

    Get More Information

    Do you have any questions about the SRS2000-SW26HH2G24T price?

    Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 52 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 5-PIN terminal block
Dimensions (W x H x D) 440mm × 43.8mm × 200mm
DIP Switch RSTP，VLAN
EMC EN 55032EN 55035EN IEC61000-3-2EN61000-3-3FCC Part 15 Subpart B Class A
EMI FCC 47 CFR Part 15 Class AEN 55032 Class AEN 55035 Class A
EMS IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5
Exchange Rate 148,800 pps/100M ports; 1,488,000 pps/1000M ports
Freefall IEC 60068-2-31
Housing Aluminum Alloy Housing
Input Voltage 100 ~ 240V, dual inputs
Installasion Rack-Mounted
IP Rating IP40;
MAC Table Size 8K
Management Mode WEB based on HTTP，SNMPv1，SNMPv2
MTBF ≥300,000H
Operating Temperature -40 ℃~ 75 ℃
Others Test Report from Ministry of Public Security, Network Access License, RoHS
Overload Current Protection Supported
Packet Buffer Size 4.1Mbti
Power Consumption 20W
Processing Type Store-and-Forward
Product Safety EN/IEC62368-1
Redundancy RSTP
Reverse Polarity Protection Supported
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Vibration IEC 60068-2-6
Weight 1.7 kg
