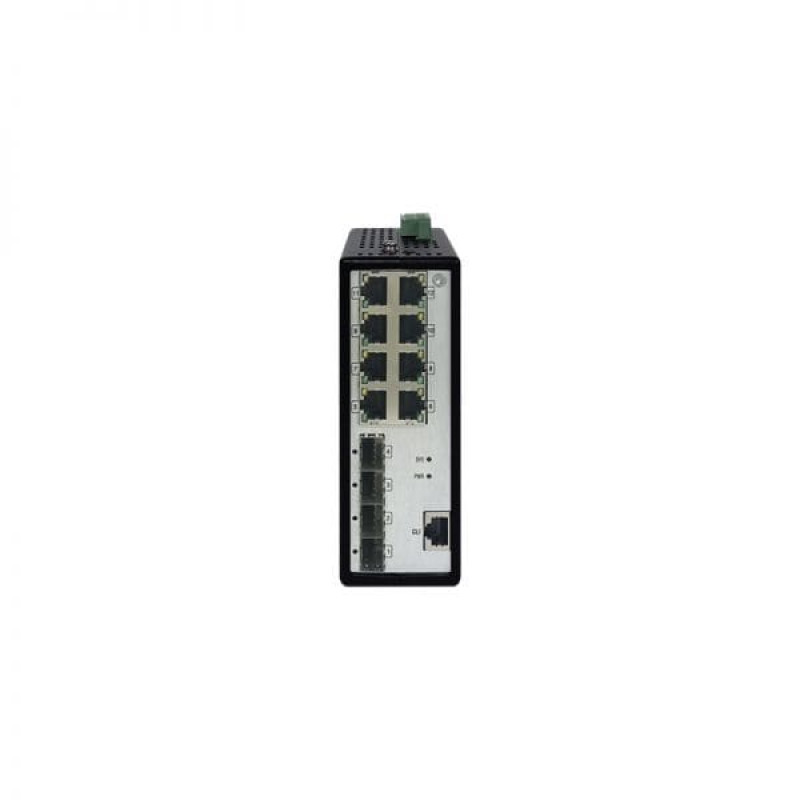

TOM1000-C12F4080P
TOM1000-C12F4080P

TOM1000-C12F4080P

Нет отзывов
Код товара: MRD TOM1000-C12F4080P
147 583 ₽
В наличии много 1000 шт

TOM1000 Layer2+ Industrial Switch made from Anti-Corrosion Casting Alu- minum Alloy. 4 1000BaseX SFP Ports (SFP module not included), 8 802.3af/ at PoE 10/100/1000BaseT Ports. 1 Management Serial CLI Port, IP30 Protec- tion Class, Operating Temperature from -40°C to +75°C, and MTBF over 400K hours. Dual 48-57VDC Power Inputs. CLI and Power Cable Order Sepa- rately.

Quick Spec

Table 1 shows the quick spec of the TOM1000-C12F4080P

Model TOM1000-C12F4080P
Interface Configuration 4 x 100/1000BaseX SFP Ports
8 x 10/100/1000BaseT Ports
Input Voltage Dual 48-57VDC Power Inputs
Fansless Yes
Backplane Bandwidth 40 Gbps
Installasion DIN-Rail
IP Rating IP30;
Conformal Coated Optional
Dimensions (W x H x D) 52mm x 140mm x 110mm
2.05 inch x 5.51 inch x 4.34inch
Weight 0.7 kg
1.54 lb
MTBF ≥400,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1
FCC Part 15 Subpart B Class A
IEC/EN55022 Class A
IEC60825-1
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Rail Industry EN50121-4
Power Industry IEC61850-3
IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010 (pending)
Shipbuilding Industry GL (pending)

Product Features

● Easy network management by web browser, CLI, Telnet, serial console
● IGMP snooping and GRMP for filtering multicast traffic
● Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
● QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism
● SNMPv1/v2c/v3 for different levels of network management
● Support IEEE 802.3af/at compliant PoE
● Each PoE port provides up to 30W output power
● PoE management: PoE device detection, PoE power management
● Dual redundant power inputs design for DC models
● Die-casting aluminum alloy housing
● Fanless, -40 to 75°C wide operating temperature range
● MTBF≥400, 000H

Supported Options

Table 2 shows the supported options of the TOM1000-C12F4080P

MDP-IE150P-54 150W Industrial DIN-Rail Power Supply for PoE/PoE+ (2250V Isolation)
Input: 110/220 VAC/VDC (90~264VAC/88~300VDC)
Output: 54VDC/2.78A
Operating Temperature from -40°C to +75°C with conventional cooling
MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850 Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TOM1000-C12F4080P

Product number Product description
EDS-G512E-8PoE-4GSFP 8 x GE(POE) + 4 x GX SFP -40 to 75°C (MOXA)

Get More Information

Do you have any questions about the TOM1000-C12F4080P price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 40 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 1 removable 5-contact terminal block
Diagnosis Mode Indicator light, journal file, relay, RMON, port mirroring, TRAP
Dimensions (W x H x D) 52mm x 140mm x 110mm
EMI FCC 47 CFR Part 15 Class A EN55022 Class A
EMS IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-4, Class 2 IEC (EN )61000-4-5, Class 2 IEC (EN )61000-4-11, Class 4 IEC (EN )61000-4-12, Class 4
Exchange Rate 148,800 pps/100M; 1,488,000 pps/1000 M;
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Aluminum Alloy Housing
Industrial Control Industry UL/cUL61010(pending)
Input Voltage 48-57VDC
Installasion DIN-Rail
IP Rating IP40;
MAC Table Size 8K
Management Mode Browser, Serial Port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs
MTBF ≥400,000H
Operating Temperature -40 ℃ ~ 85 ℃
Others 4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Overload Current Protection Supported
Packet Buffer Size 512Kb
Power Consumption 15W（without POE）
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1FCC Part 15 Subpart B Class A IEC/EN55022 Class A IEC60825-1
Rail Industry EN50155; IEC/EN61373; EN50121
Redundancy RSTP, STP, MSTP, MRD-Ring®, port trunking
Reverse Polarity Protection Supported
Shipbuilding Industry DNV-GL (pending)
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization NTP
Transportaon Industry JT/T817-2011(pending)
Vibration IEC 60068-2-6
Weight 0.7 kg
