TOM1000-BHTB6P2040P
TOM1000-BHTB6P2040P

TOM1000-BHTB6P2040P

Нет отзывов
Код товара: MRD TOM1000-BHTB6P2040P
23 263 ₽
В наличии много 1000 шт

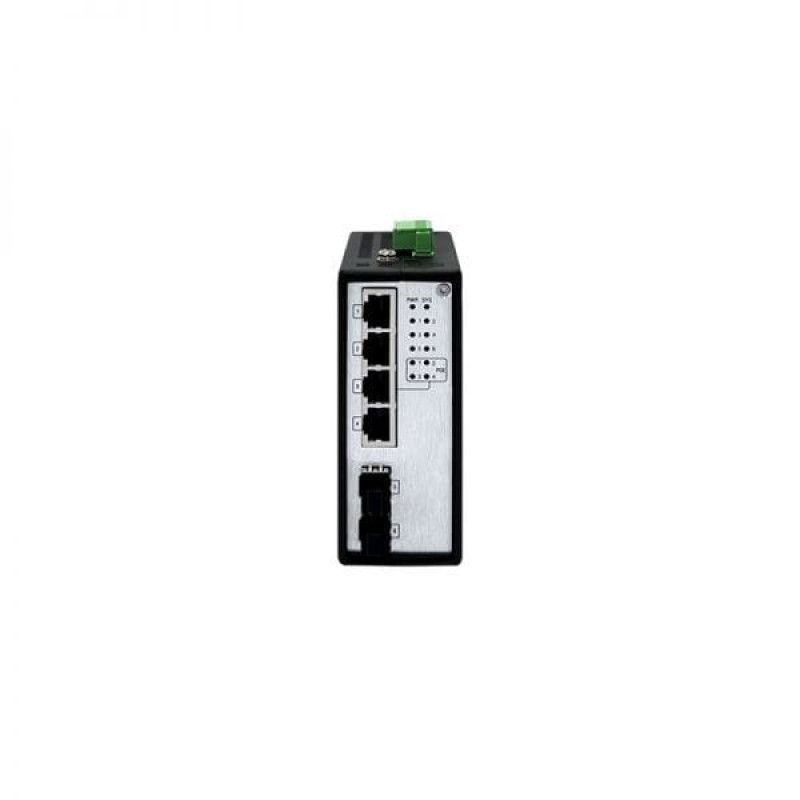

6-Port Layer 2 Industrial Switch made from aluminum alloy, support 2 100/1000BaseX SFP ports (SFP module not included) + 4 PoE 10/100/1000BaseT ports, DIN-Rail mounted. IP40 Protection Class. Oper- ating temperature -40°C ~ +75°C. Dual 48~54VDC redundant power inputs.

Quick Spec

Table 1 shows the quick spec of the TOM1000-BHTB6P2040P.

Model TOM1000-BHTB6P2040P
Interface Configuration 2 x 100/1000BaseX SFP
4 x 10/100/1000BaseT
Input Voltage 48 ~ 54VDC, dual inputs
Fansless Yes
Backplane Bandwidth 20 Gbps
Installasion DIN-rail mounting
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 43.5mm x 110mm x 105mm
1.72 inch x 4.33 inch x 4.13 inch
Weight 0.4 kg
0.89 lb
MTBF ≥300,000H
Operating Temperature -40 °C~ 75 °C
-40°F ~ 167°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A

Product Features

● Up to 56Gbps backplane bandwidth
● Wide and varied power supply range
● Non-rust aluminum alloy and torx screws
● Support network management
● All ports support line speed forwarding and automatic turnover, supporting long distance transmission
● Support uploading and downloading configuring files
● PoE models support IEEE 802.3af/at compliant PoE
● Each PoE port support IEEE 802.1af and 802.1at
● Lightning protection: power supply port ±4KV, RJ45 port ±4KV
● Small and easy to install, plug and play without configuration
● Fanless design, wide working temperature and quiet operation
● MTBF ≥ 300,000 hours

Supported Options

Table 2 shows the supported options of the TOM1000-BHTB6P2040P.

MDP-IE150P-54 150W Industrial DIN-Rail Power Supply for PoE/PoE+ (2250V Isolation)
Input: 110/220 VAC/VDC (90~264VAC/88~300VDC)
Output: 54VDC/2.78A
Operating Temperature from -40°C to +75°C with conventional cooling
MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850 Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TOM1000-BHTB6P2040P.

Product number Product description
DS-3T2506P 2 x GX SFP+ 4 x GE(POE). Exchange Rate. 38.688 Mpps (HIKVISION)

Get More Information

Do you have any questions about the TOM1000-BHTB6P2040P price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 20 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 1 removable 5-contact terminal block
Dimensions (W x H x D) 43.5mm x 110mm x 105mm
EMC EN 55032EN 55035EN IEC61000-3-2EN61000-3-3FCC Part 15 Subpart B Class A
EMI FCC 47 CFR Part 15 Class AEN 55032 Class AEN 55035 Class A
EMS IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5
Exchange Rate 148,800 pps/100M ports; 1,488,000 pps/1000M ports
Freefall IEC 60068-2-31
Housing Aluminum Alloy Housing
Input Voltage 9.6 ~ 60VDC & 18 ~ 30VAC, dual inputs
Installasion DIN-rail mounting
IP Rating IP40;
MAC Table Size 8K
Management Mode Browser, Console, Telnet, SSH 2.0, Syslog, NTP/SNTP, STD-62 SNMPv3, SNMPv1, SNMPv2, FTP/TFTP
MTBF ≥300,000H
Operating Temperature -40 ℃~ 75 ℃
Others Test Report from Ministry of Public Security, Network Access License, RoHS
Overload Current Protection Supported
Packet Buffer Size 4.1Mbti
Power Consumption 10W（without POE）
Processing Type Store-and-Forward
Product Safety EN/IEC62368-1
Redundancy RSTP, STP, MSTP, Port Trunking, MRD-Ring
Reverse Polarity Protection Supported
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization NTP
Vibration IEC 60068-2-6
Weight 0.4 kg
