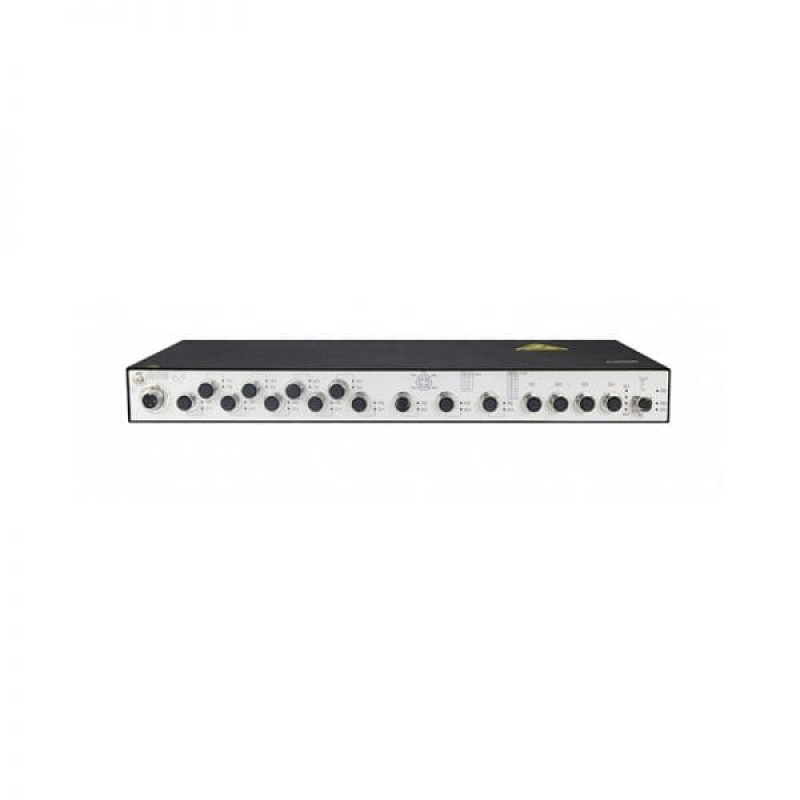

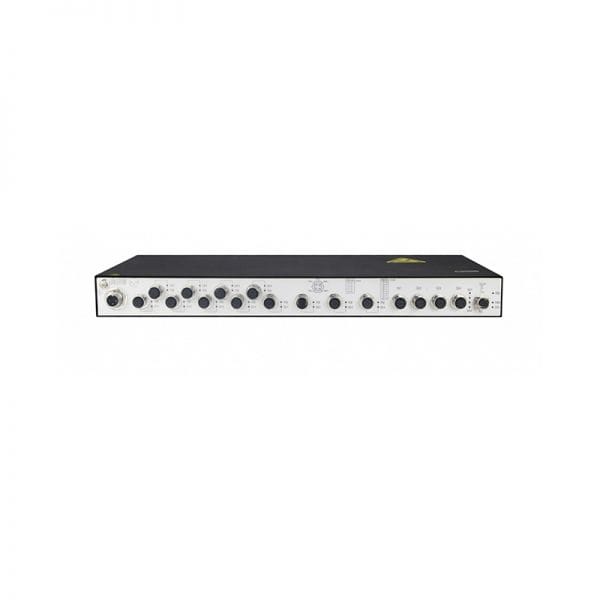

TCC4100-CRPISL3
TCC4100-CRPISL3

TCC4100-CRPISL3

Нет отзывов
Код товара: MRD TCC4100-CRPISL3
0 ₽
В наличии много 1000 шт

CRRC standardized 1U height Layer3 PlS driver's room industrial switch, 12M12 D-code 10/100BaseT POE ports+4 M12 X-code 10/100/1000BaseTports with BYPASS function

Quick Spec

Table 1 shows the quick spec of the TCC4100-CRPISL3

Model TCC4100-CRPISL3
Interface Configuration 12 x M12 D-code 10/100BaseT POE ports
4 x M12 X-code 10/100/1000BaseT
Input Voltage
Fansless Yes
Backplane Bandwidth 68 Gbps
Installasion Rack-Mounted
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 440mm x 44.2mm x 200mm
17.32 inch x 1.74 inch x 7.87 inch
Weight 4 kg
8.82 lb
MTBF ≥600,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1
FCC Part 15 Subpart B Class A
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry JT/T817-2011;
Rail Industry EN50121, EN50155, IEC/EN61373
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010
Shipbuilding Industry GL (pending)

Product Features

Linear switches with high performance and flexible configuration
Support power-over-ethernet (compliant with lEEE 802.3 af/at standards)
Each PoE port provides up to 30W output power
POE management: PoE device detection, PoE power management
Support MRD-Ring network redundancy for< 50 ms recovery time
Support Media Redundancy Protocol (compliant with lEC62439)
Any two ports can establish a self-recovery ring and support multiple independent self-recovery rings
Support Dying gasp function and initiatively report power-down state through SNMP protocol
Support MODBUS/UDP/SNMP remote monitoring and various mainstream OPc software
Built-in unified MicOS real-time operating systems for all MRD™m switches
MTBF >600, 000 hours

Get More Information

Do you have any questions about the TCC4100-CRPISL3 price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 68 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Diagnosis Mode Indicator light, journal file, relay, RMON, port mirroring, TRAP
Dimensions (W x H x D) 440mm x 44.2mm x 200mm
EMI FCC 47 CFR Part 15 Class AEN55022 Class A
EMS IEC (EN )61000-4-2, Class 4IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 4 IEC (EN )61000-4-9, Class 4
Exchange Rate 148,800 pps/100M; 1,488,000 pps/1000 M
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Aluminum Alloy Housing
Industrial Control Industry UL/cUL61010
Installasion Rack-Mounted
IP Rating IP20;
MAC Table Size 16K
Management Mode Web, serial port, STD-17 MIB-II, STD-58 SMIV2, STD-59 RMON, STD-62SNMPV3,SNMPv2C,SNMPv1, RFC2925 Ping MIB, MRD Private MIBs
MTBF ≥600,000H
Operating Temperature -40 ℃ ~ 85 ℃
Others 4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Overload Current Protection Supported
Packet Buffer Size 　
Power Consumption 35W
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1FCC Part 15 Subpart B Class A
Rail Industry EN50121, EN50155, IEC/EN61373
Redundancy MRD-Ring ,MRP, RSTP, port trunking
Reverse Polarity Protection Supported
Shipbuilding Industry GL (pending)
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization SNTP
Transportaon Industry JT/T817-2011;
Vibration and Shock IEC 61373
Weight 4 kg
