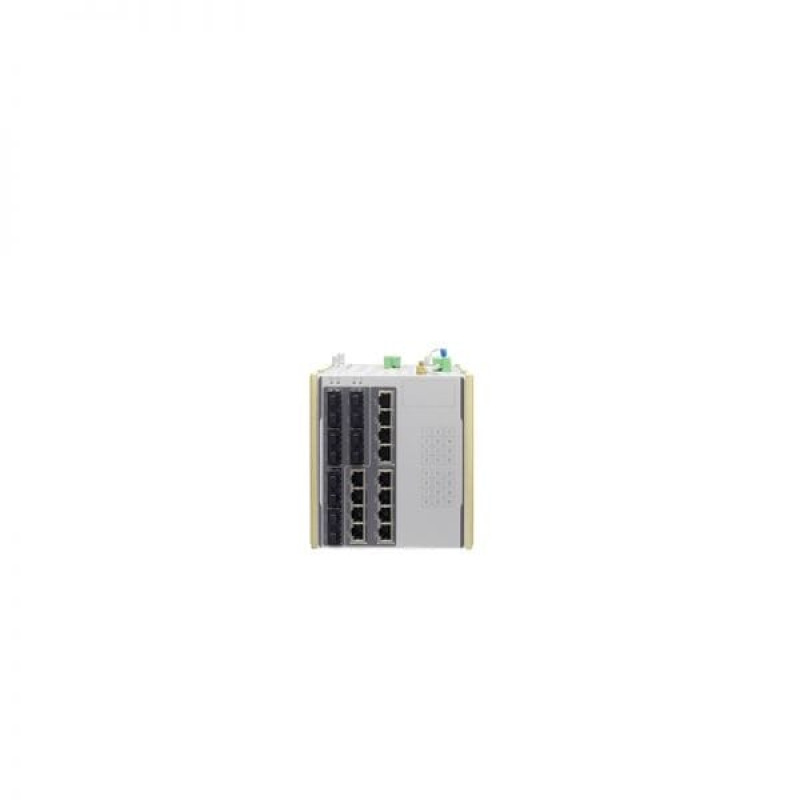

TCC4100-BUC0C0
TCC4100-BUC0C0

TCC4100-BUC0C0

Нет отзывов
Код товара: MRD TCC4100-BUC0C0
208 756 ₽
В наличии много 1000 шт

Layer2 industrial switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel, 12 100/1000BaseX SFP Ports (SFP module not included) and 12 10/100/1000BaseT Ports. 1 management serial CLI port, 1 alarm relay port (250VAC, 2A@250VAC or 125VDC, 2A@30VDC). Isolated Dual Univer- sal 18~300VDC or 90~264VAC Power Inputs. IP40 Protection Class. Working
temperature -40°C ~ +85°C.

Quick Spec

Table 1 shows the quick spec of the TCC4100-BUC0C0.

Model TCC4100-BUC0C0
Interface Configuration 12 x 100/1000BaseX SFP Ports
12 x 10/100/1000BaseT Ports
Input Voltage 18 ~ 300VDC or 90 ~ 264VAC, dual inputs
Fansless Yes
Backplane Bandwidth 52 Gbps
Installasion DIN-Rail
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 130mm×140mm×110mm
5.11 inch x 5.51 inch x 4.34inch
Weight 1.5 kg
3.15 lb
MTBF ≥600,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Rail Industry EN50121-4
Power Industry IEC61850-3
IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010 (pending)
Shipbuilding Industry GL (pending)

Product Features

● Support up to 12 10/100/1000BaseT Ports and 12 100/1000BaseX SFP Ports
● Configurable by web browser, Telnet, CLI
● With functions of data packet dropout protection and quick recovery from network failure
● Support various multicast protocols and strong safety protection mechanism
● IGMP snooping and GMRP for filtering traffic from industrial Ethernet protocols
● QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism
● SNMPv1/v2c/v3 for different levels of network management
● RMON for proactive and efficient network monitoring
● Bandwidth management to prevent unpredictable network status
● Port mirroring for online debugging
● Isolated redundant dual inputs power
● Fanless, -40°C to 85°C operating temperature range

Supported Options

Table 2 shows the supported options of the TCC4100-BUC0C0.

MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850 Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TCC4100-BUC0C0.

Product number Product description
TCC4100-BEC0C0 Layer2 industrial switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel, 12 100/1000BaseX SFP Ports (SFP module not included) and 12 10/100/1000BaseT Ports. 1 management serial CLI port, 1 alarm relay port (250VAC, 2A@250VAC or 125VDC, 2A@30VDC). Isolated Dual 9.6-
60VDC Power Inputs. IP40 Protection Class. Working temperature -40°C ~ +85°C.
MDS-G4028-T 14 x GE + 14 x GX SFP (MOXA)
DS-3T2524TF 12 x GXSFP + 12 x GE

Get More Information

Do you have any questions about the TCC4100-BUC0C0 price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 52 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 1 removable 5-contact terminal block
Diagnosis Mode Indicator light, journal file, relay, RMON, port mirroring, TRAP
Dimensions (W x H x D) 130mm×140mm×110mm
EMI FCC 47 CFR Part 15 Class AEN 55032 Class AEN 55035 Class A
EMS IEC (EN) 61000-4-2, Class 4 IEC (EN) 61000-4-3, Class 3 IEC (EN) 61000-4-4, Class 4 IEC (EN) 61000-4-5, Class 4 IEC (EN) 61000-4-6, Class 3 IEC (EN) 61000-4-9, Class 5
Exchange Rate 148,800 pps/100M; 1,488,000 pps/1000 M;
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Aluminum Alloy Housing
Industrial Control Industry UL/cUL61010(pending)
Input Voltage 18~300VDC or 90~264VAC
Installasion DIN-Rail
IP Rating IP40;
MAC Table Size 8K
Management Mode Web, Serial Port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs, SSH, HTTPs, Telnet
MTBF ≥600,000H
Operating Temperature -40 ℃ ~ 85 ℃
Others 4K VLANS, IPv4/IPv6 multi-cast, storm control, MC/BC protection, supportJumbo Frame
Overload Current Protection Supported
Packet Buffer Size 4Mbit
Power Consumption 28W
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1FCC Part 15 Subpart B Class A
Rail Industry EN50155; IEC/EN61373; EN50121
Redundancy STP, MSTP, RSTP, port trunking
Reverse Polarity Protection Supported
Shipbuilding Industry DNV-GL (pending)
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization NTP
Transportaon Industry JT/T817-2011(pending)
Vibration IEC 60068-2-6
Weight 1.5 kg
