TCC4100-BU8080
TCC4100-BU8080

TCC4100-BU8080

Нет отзывов
Код товара: MRD TCC4100-BU8080
184 478 ₽
В наличии много 1000 шт

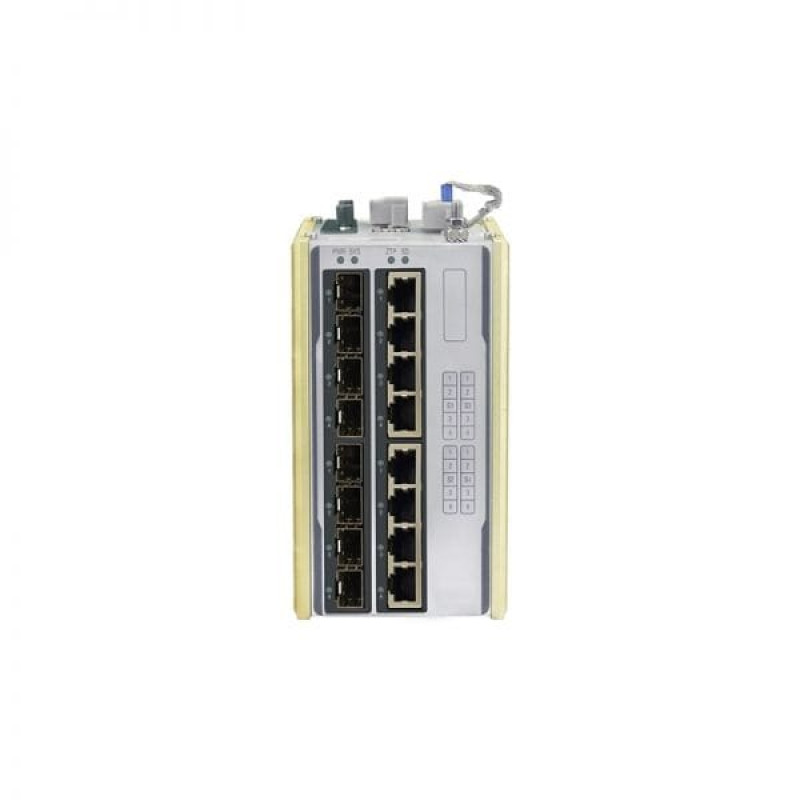

TCC4100 Layer2 Industrial Switch made from Anti-Corrosion Aluminum Al- loy and Stainless Steel. 8 100/1000BaseX SFP Ports (SFP module not includ- ed) and 8 10/100/1000BaseT Ports. Isolated 100-240V Power Supply. IP40 Protection Class.

Quick Spec

Table 1 shows the quick spec of the TCC4100-BU8080

Model TCC4100-BU8080
Interface Configuration 8 x 100/1000BaseX SFP Ports
8 x 10/100/1000BaseT Ports
Input Voltage 18 ~ 300VDC or 90 ~ 264VAC, dual inputs
Fansless Yes
Backplane Bandwidth 56 Gbps
Installasion DIN-Rail
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 79mm x 140mm x 110mm
3.11 inch x 5.51 inch x 4.34inch
Weight 1.5 kg
3.15 lb
MTBF ≥600,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Rail Industry EN50121-4
Power Industry IEC61850-3
IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010
Shipbuilding Industry GL (pending)

Product Features

● Support ZTP, CCM, Q-in-Q
● Support ERPS
● Support MRD-Ring® Ethernet ring network, self-recovery time of each node is less than 5ms and self re-covery time of the network is less than 50ms
● Any two ports can compose a self-healing ring network, and support multiple independent self-healing ring
● With functions of data packet dropout protection and quick recovery from network failure
● Provide bandwidth service with different levels in Ethernet service by speed limiting and traffic shaping in QoS of layer 2
● Support professional network management, monitoring alarm tool and OPC
● Support Dying gasp
● Redundant dual power inputs
● Fanless, -40 to 85°C wide operating temperature range
● MTBF >600, 000 hours

Supported Options

Table 2 shows the supported options of the TCC4100-BU8080

MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850 Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Get More Information

Do you have any questions about the TCC4100-BU8080 price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 56 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 5-pin terminal block
CPU MIPS
Diagnosis Mode Indicator light, journal file, relay, RMON, port mirroring, TRAP
Dimensions (W x H x D) 79mm x 140mm x 110mm
EMI FCC 47 CFR Part 15 Class AEN 55032 Class AEN 55035 Class A
EMS IEC (EN) 61000-4-2, Class 4 IEC (EN) 61000-4-3, Class 3 IEC (EN) 61000-4-4, Class 4 IEC (EN) 61000-4-5, Class 4 IEC (EN) 61000-4-6, Class 3 IEC (EN) 61000-4-9, Class 5
Exchange Rate 148,800 pps/100M; 1,488,000 pps/1000 M;
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Aluminum Alloy Housing
Industrial Control Industry UL/cUL61010
Input Voltage 100-240V & 18-60VDC, dual power inputs
Installasion DIN-Rail
IP Rating IP40;
MAC Table Size 8K
Management Mode Browser, Serial Port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs
MTBF ≥600,000H
Operating Temperature -40 ℃ ~ 85 ℃
Others IPv4/IPv6 multi-cast, storm control, MC/BC protection, support Jumbo Frame
Overload Current Protection Supported
Packet Buffer Size 4Mbit
Power Consumption 15W
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1FCC Part 15 Subpart B Class A
Rail Industry EN50155; IEC/EN61373; EN50121
Redundancy MRD-Ring®, MSTP, RSTP, port trunking
Reverse Polarity Protection Supported
Shipbuilding Industry DNV-GL (pending)
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization NTP
Transportaon Industry JT/T817-2011(pending)
Vibration IEC 60068-2-6
Weight 1.5 kg
